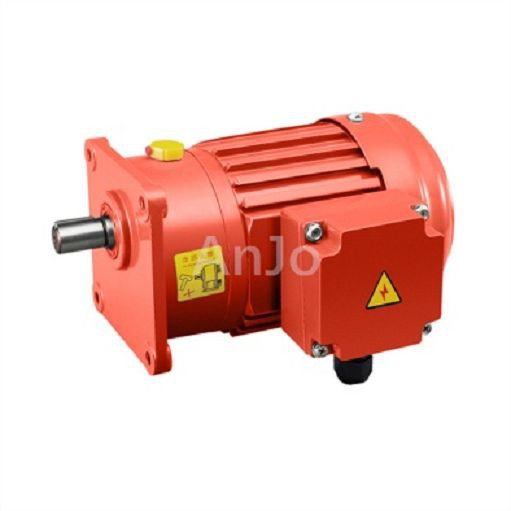

100W Small Gear Motor

100W small gear motor is a drive unit that integrates a 100-watt electric motor with a reduction gearbox. Its core function is to achieve "speed reduction and torque increase," meaning it reduces the high rotational speed of the motor while increasing the output torque, meeting the needs of various equipment requiring low-speed, high-torque drive.





● Compact size and flexible installation

The compact overall dimensions allow for installation in confined spaces, and it supports various mounting methods including flange mounting, base mounting, and shaft mounting, adapting to the layout requirements of different equipment.

● Stable operation and low noise

The gearbox's gear meshing design is optimized, resulting in low vibration and noise during operation, making it suitable for applications requiring low noise levels (such as laboratory equipment and office automation equipment).





Model	100W Small Gear Motor
Power	100W
Rated speed	1400rpm
Ratio	3~200:1
Output speed	500~7rpm
Voltage	110V, 220V, 230V, 380V
Frequency	50HZ/60HZ
Output shaft diameter	Φ18, Φ22
Cooling	IC411 fan cooling

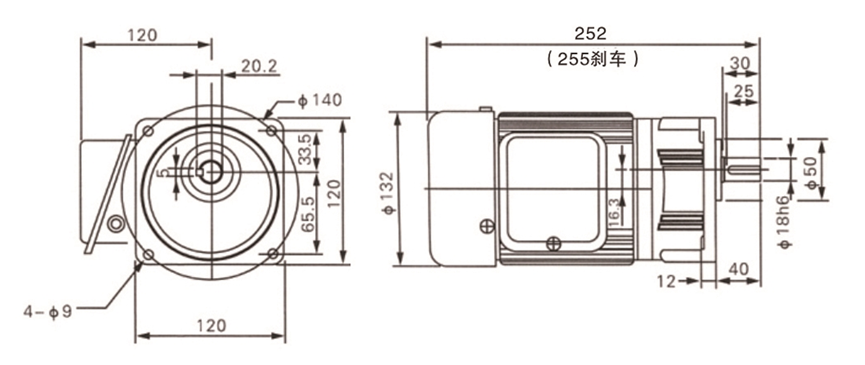

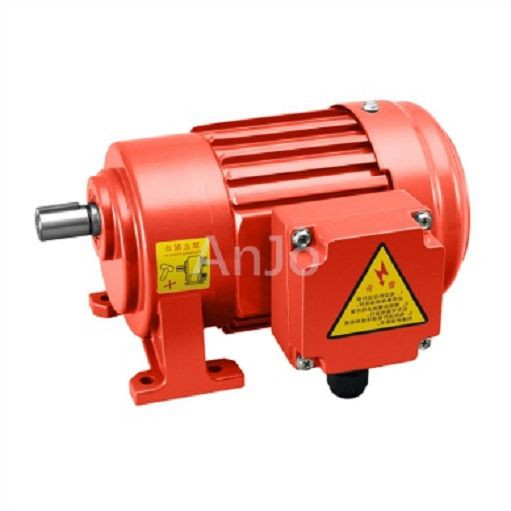

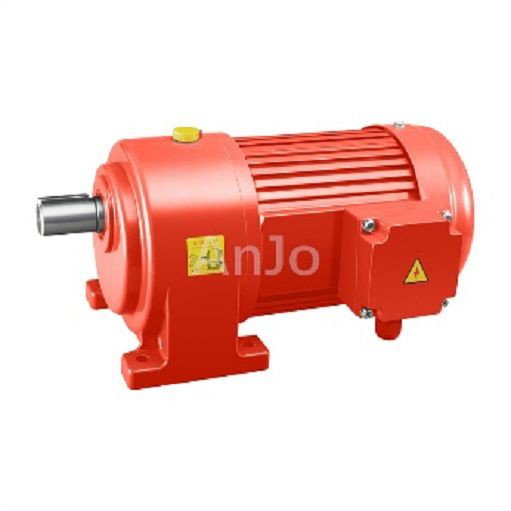

AH HORIZONTAL TYPE

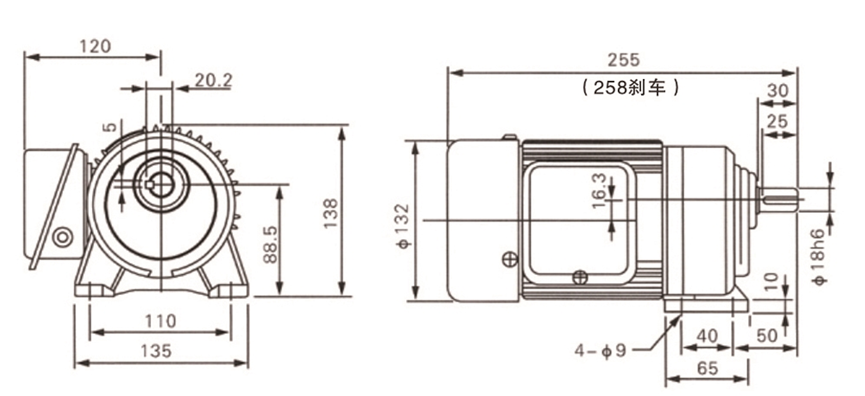

Normal duty AH-18-100 ratio 3~60

Light duty AH-18-100 ratio 70~200

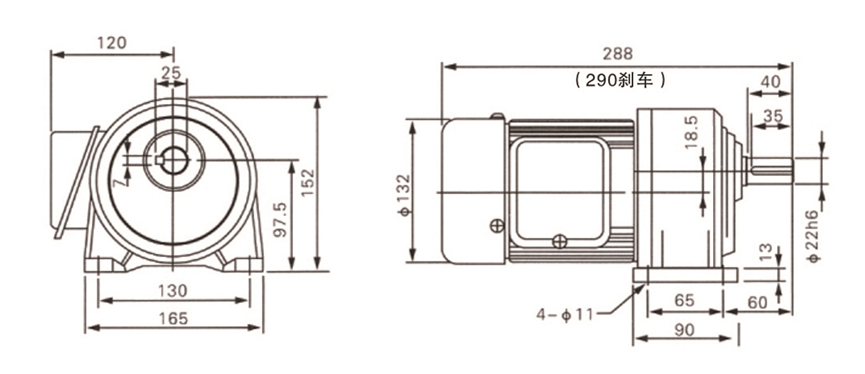

Normal duty AH-22-100 ratio 60~200

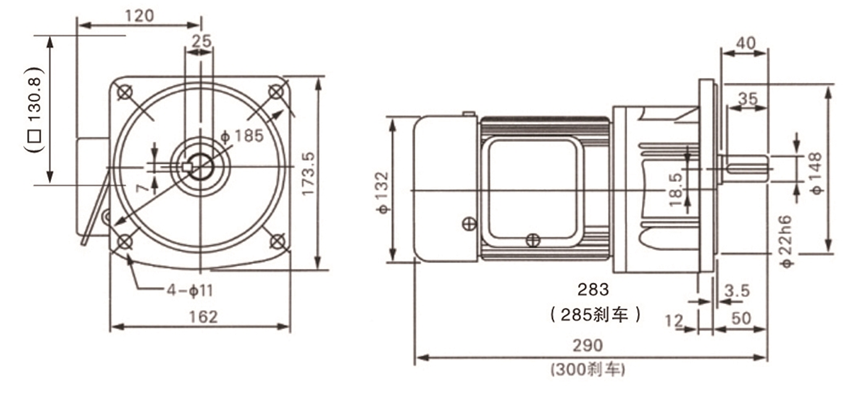

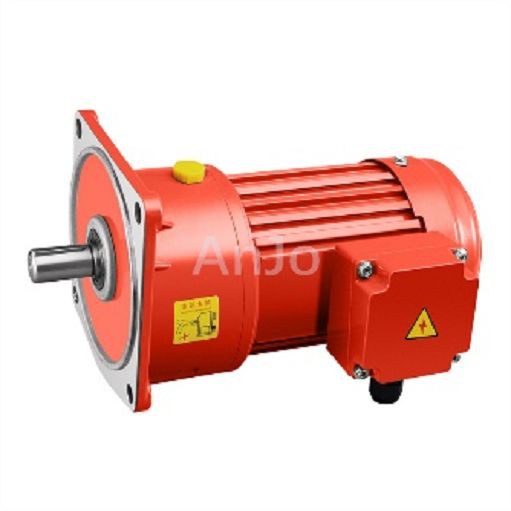

AV VERTICAL TYPE

Normal Duty AV18-100 ratio 3~60

Light load miniature frame AV-18-100 ratio 70~200





Normal Duty AV-22-100 ratio 60~200
