Industrial Gearbox
Industrial gearbox is an independent, enclosed mechanical transmission device. Its core function is to regulate the output of a power source (such as a motor or engine) through an internal gear system (gears, shafts, bearings, etc.), mainly by reducing the speed and increasing the torque to meet the needs of heavy-duty, high-load industrial equipment.

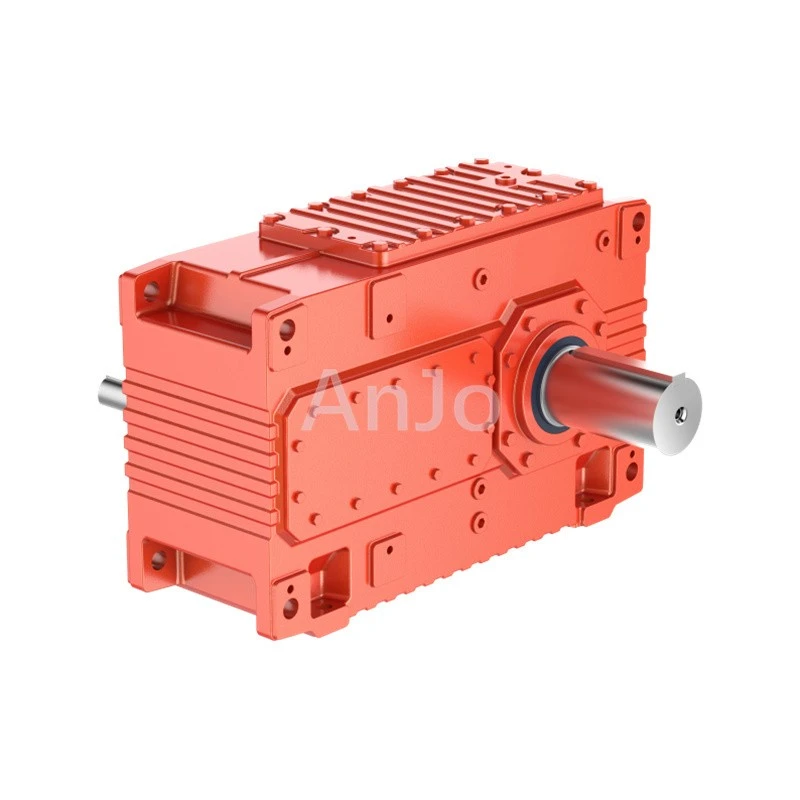

Parallel shaft Industrial Gearbox Models
AH1SH
AH2SH, AH2HH, AH2DH, AH2HM, AH2DM, AH2SV, AH2HV, AH2DV
AH3SH, AH3HH, AH3DH, AH3HM, AH3DM, AH3SV, AH3HV, AH3DV
AH4SH, AH4HH, AH4DH, AH4HM, AH4DM, AH4SV, AH4HV, AH4DV

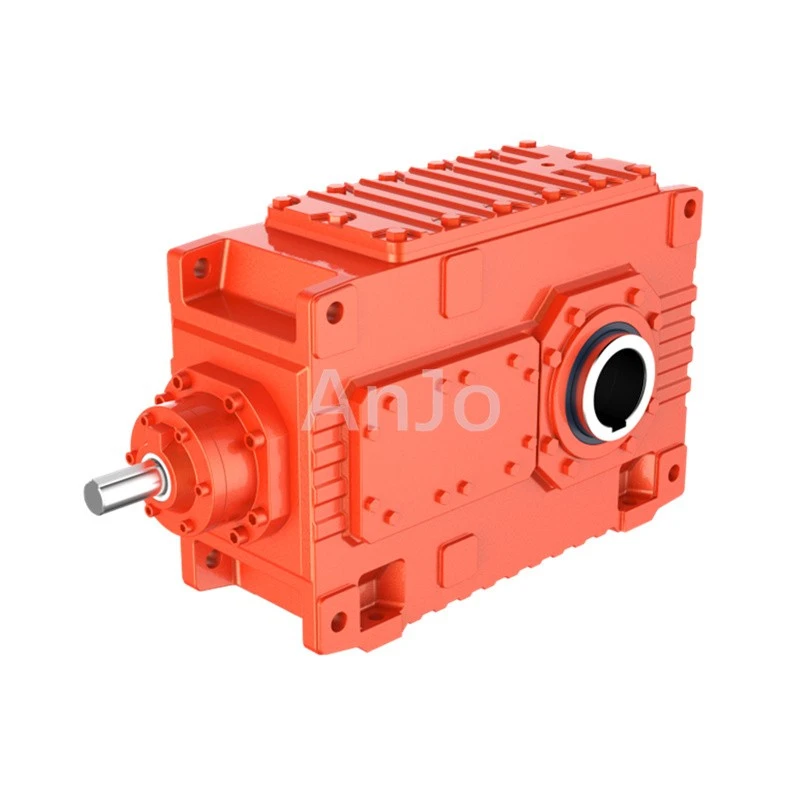

Bevel Helical Industrial Gearbox
AB2SH, AB2HH, AB2DH, AB2HM, AB2DM, AB2SV, AB2HV. AB2DV
AB3SH, AB3HH, AB3DH, AB3HM,AB3DM, AB3SV, AB3HV, AB3DV
AB4SH, AB4HH, AB4DH, AB4HM, AB4DM, AB4SV, AB4HV, AB4DV
|
Model |
Stage |
Size |
Ratio |
Nominal Power (KW) |
Nominal Torque(N.m) |
Shaft |
Mounting |
|
Industrial gearbox |
Single-stage |
3--19 |
1.25--5.6 |
30-4,744 |
2,200-165,300 |
S. Solid Shaft H. Hollow Shaft D.Hollow Shaft for Shrink Disk |
H:Horizontal V:Vertical M:Horizontal Design Without Feet |
|
Double-stage |
4--26 |
6.3--28 |
21-5,193 |
5,900-843,000 |
|||
|
Three-Stage |
5--26 |
22.4--112 |
9-4,749 |
10,600-952,000 |
|||
|
Four-Stage |
7--26 |
100--450 |
4.1-1,325 |
18,400-944,000 |
- Low noise and low power consumption, strong operational stability: The use of advanced gear grinding technology can effectively reduce the temperature rise and noise of the whole machine during operation, and also improve the transmission reliability and power transmission capability.
- The universal housing design reduces the number of parts while increasing the number of specifications and models. It can also be combined with the R and K series to achieve a larger speed ratio.
- Modular design with wide adaptability: The gearbox can be used independently or combined with other models to form a speed reduction unit. It can also be modified into an industry-specific gearbox according to customer needs, and is widely used in many industrial fields such as metallurgy, mining, petrochemical, rubber and plastics, and logistics equipment.
|
Model |
Industrial Gearbox |
|
Input type |
Flange, shaft |
|
Output type |
Solid shaft, hollow shaft, shrink disk, splined shaft, flange, etc |
|
Optional |
Fan, oil pump, oil tank, back stop, cooling systems, etc |
|
Housing material |
HT250 |
|
Gear material |
Alloy steel |
|
Warranty |
12 month |
For more types and sizes, please contact our sales staff.
Q1: What details should I provide to get an accurate quotation?
A1:Please provide the following information: Product Model/Size, Transmission Ratio, Output Speed, Shaft Directions (input/output), and your required Order Quantity. For non-standard products, additional details or drawings are helpful.
Q2: How soon can I get a reply to my inquiry?
A2: We respond to all inquiries within 12 hours during our business days to provide prompt support and information.
Q3: What documents do you provide for export?
A3: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
