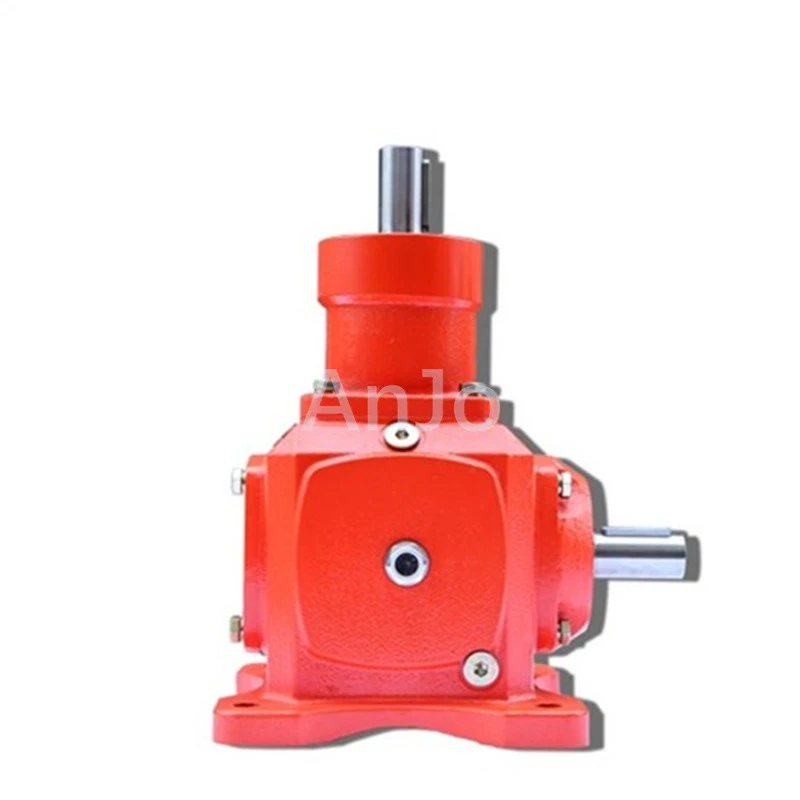

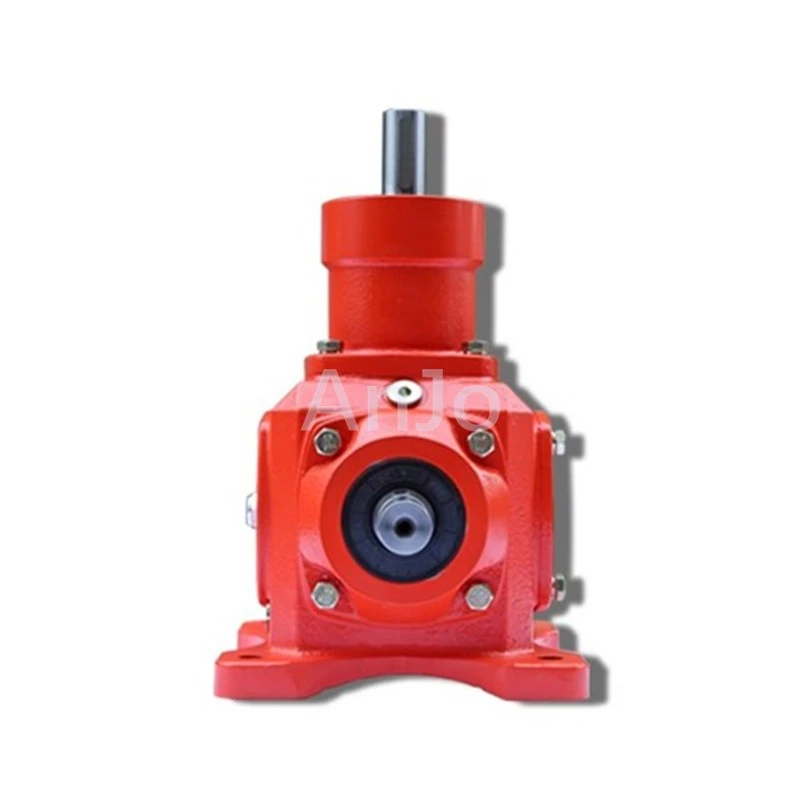

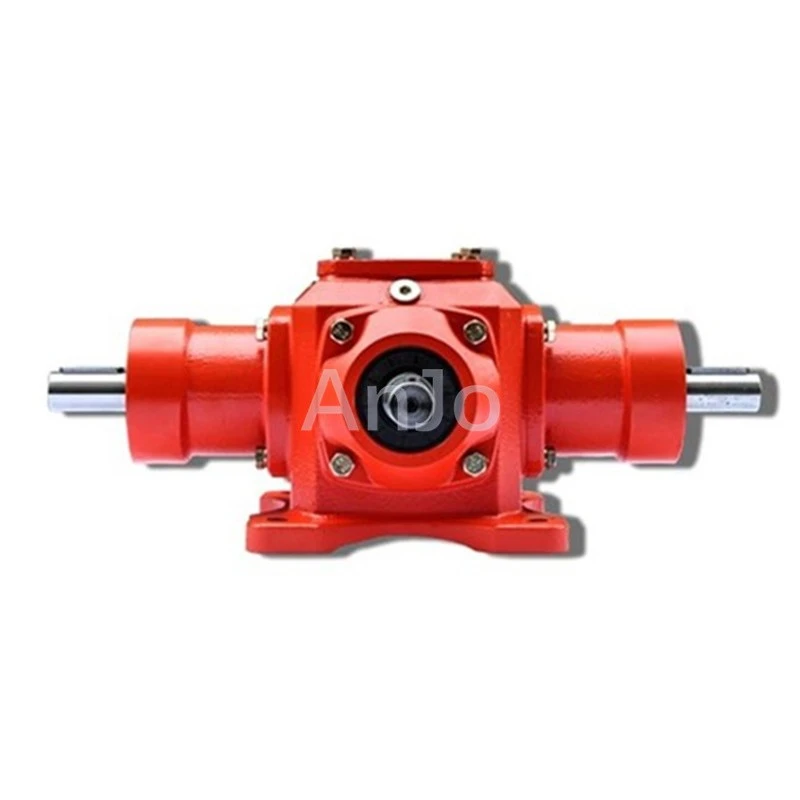

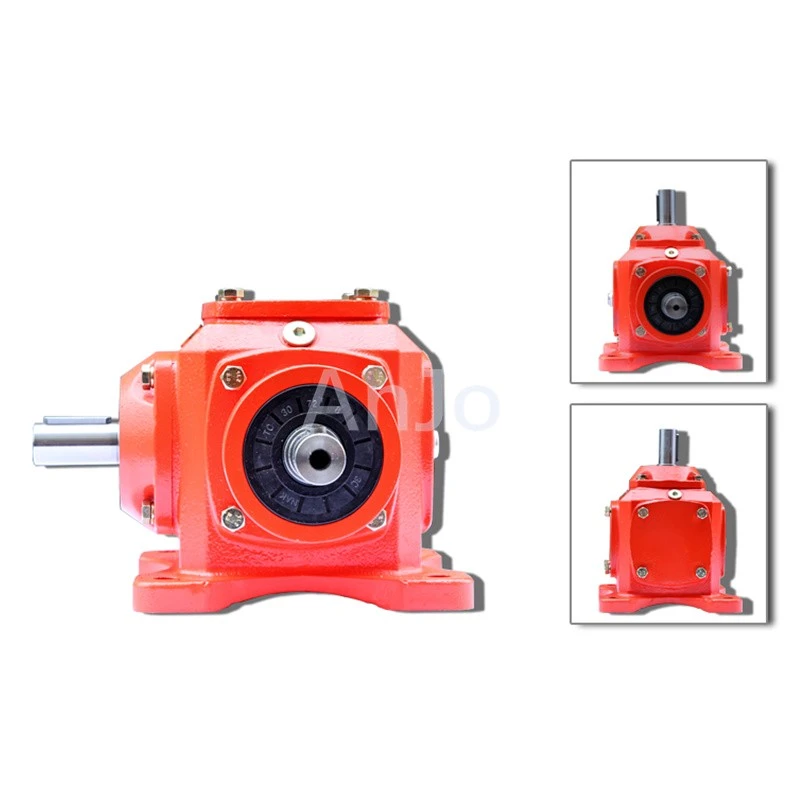

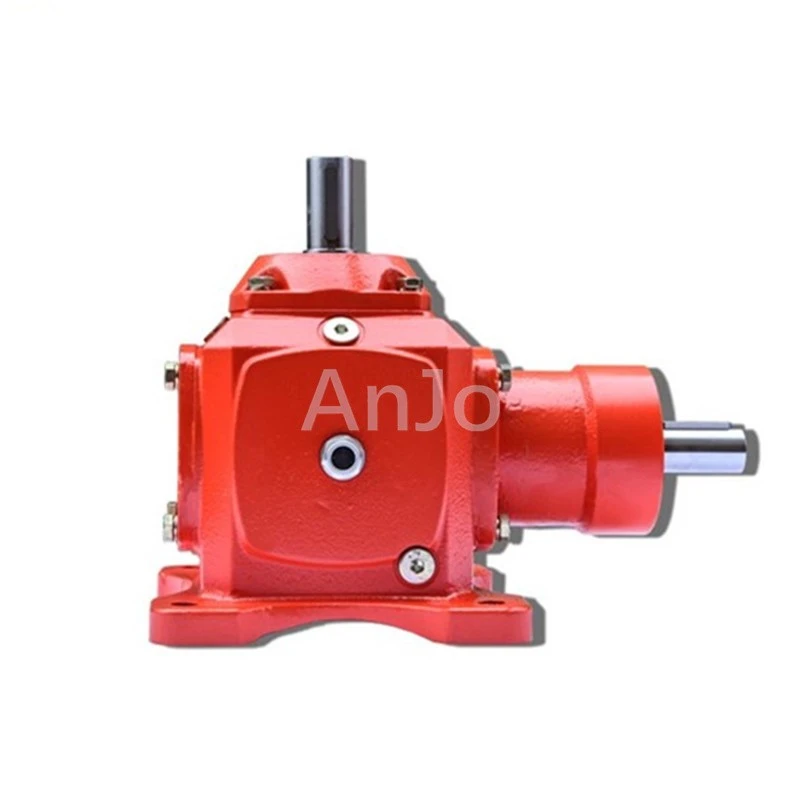

Spiral Bevel Gearbox
Spiral bevel gearbox is a critical component widely used in mechanical transmission systems. Their core feature is the use of spiral bevel gears as the main transmission element. They are primarily used for transmitting power and motion between intersecting shafts (typically at a 90-degree angle), and are particularly suitable for applications requiring a change in transmission direction, handling heavy loads, demanding high stability, or requiring a compact structure.
Models
Features
- High load capacity: Simultaneous engagement of multiple teeth and a larger contact area allow it to transmit greater torque than straight bevel gears of the same size.
- Smooth operation and low noise: The progressive meshing method significantly reduces impact and vibration, resulting in quieter operation, making it suitable for equipment where noise is a concern (such as high-end machine tools and power tools).
- High transmission efficiency: Well-designed spiral bevel gearboxes can achieve transmission efficiencies of 95%-98%.
Products Description
|
Model |
Spiral Bevel Gearbox |
|
Ratio |
1, 1.5, 2, 2.5,3, 4, 5 |
|
Customized |
OEM |
|
Input speed |
1400rpm |
|
Output speed |
280~1400rpm |
|
Housing Material |
HT250 |
|
Usage |
Change direction |
|
Weight |
2~480kg |
|
Warranty |
1 year |
Drawings
Shaft direction
Installation position
Our advantages
Application
Company Profile
Product Range:
Gear reducers, worm gear reducers, and electric motors, etc.
Core Advantages
Customized production, extensive export experience;
Service Scope:
Integrated product export, technical support, and after-sales guarantee.
FAQ
Q1: What parameters are needed when selecting a product?
A1: The following core parameters are required: input speed/power, output torque/speed, gear ratio, installation space, and operating environment (temperature/dust/humidity).
Q2: What degree of transmission angle can a spiral bevel gearbox achieve?
A2: The most common is a 90° right-angle transmission, but other angles of intersecting shaft transmission can be customized according to equipment requirements.
Q3: How do we deliver?
A3: We have DHL, UPS, FedEx, freight forwarders, and competitive prices. Of course, customers can also use their own freight forwarders.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
