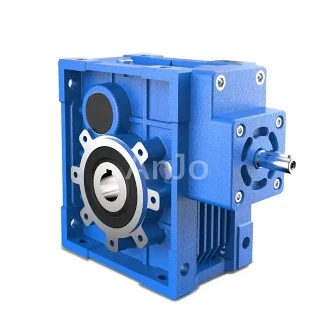

Hypoid Gearbox
Hypoid gearbox is a speed reducer that uses a hypoid gear pair with intersecting axes in space. Its core function is to achieve power reduction and transmission through a unique gear structure, differentiating it from ordinary cylindrical or bevel gear reducers. It combines the advantages of a large transmission ratio, high load capacity, and low noise, while also being compact and highly efficient. This makes it suitable for heavy-duty industrial or vehicle transmission applications where space is limited.
Models
Features
- High efficiency and torque: Due to the large contact area between the gear teeth and relatively low sliding friction, the transmission efficiency can typically reach over 95%, and it can transmit greater torque.
- Smooth and low-noise: The tooth surfaces mesh more smoothly, resulting in significantly lower vibration and noise compared to ordinary bevel gears, making them suitable for applications requiring low noise levels.
- Compact structure: The offset shaft design allows for a more compact layout, saving installation space. It can replace NMRV gear reducers.
Products Description
|
Model |
Hypoid Gearbox |
|
Ratio |
7.5~300 |
|
Input power |
0.12~4KW |
|
Input speed |
1400rpm |
|
Output speed |
4.8~182rpm |
|
Housing Material |
Aluminum |
|
Stage |
2, 3 |
|
Weight |
4~15kg |
|
Warranty |
1 year |
Drawings
Shaft direction
The motor can be run either CW or CCW. When using with the gearbox, the direction on the chart
is recommended.
Our advantages
Application
Company Profile
Product Range:
Gear reducers, worm gear reducers, and electric motors, etc.
Core Advantages
Customized production, extensive export experience;
Service Scope:
Integrated product export, technical support, and after-sales guarantee.
FAQ
Q1: What's the key parameters need to be considered for the selection process?
A1: In addition to the usual parameters such as gear ratio, torque, and mounting dimensions, special attention should be paid to: axial and radial load capacity, allowable input speed, thermal power (heat dissipation capacity), and the required lubrication method.
Q: What is the payment term?
A2: Total amount less than 10000USD, 100% in advance. Total amount more than 10000USD, 30% T/T in advance ,balance before shippment. Other terms can be negotiable.
Q3: How do we deliver?
A3: We have DHL, UPS, FedEx, freight forwarders, and competitive prices. Of course, customers can also use their own freight forwarders.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
