Single Stage Helical Gearbox

What is a Single Stage Helical Gearbox

A single-stage helical gear reducer is an industrial power transmission device that achieves speed reduction through a single pair of helical gears; it is also the simplest in structure among all hard-toothed gear reduction equipment.

The complete unit consists solely of a single meshing pair-one driving helical gear and one driven helical gear-and contains no additional multi-stage transmission components. The motor drives the smaller gear (pinion) to rotate; through the progressive meshing action of the helical teeth, it directly drives the larger gear to reduce rotational speed and amplify output torque. Since the reduction process occurs in a single step, the unit is designated as "single-stage."

Unlike spur gears, helical gears feature a spiral tooth profile, which ensures a smoother meshing process and a larger contact area, thereby resulting in reduced operational shock and minimized frictional losses.





Type of single stage helical gearbox

01.

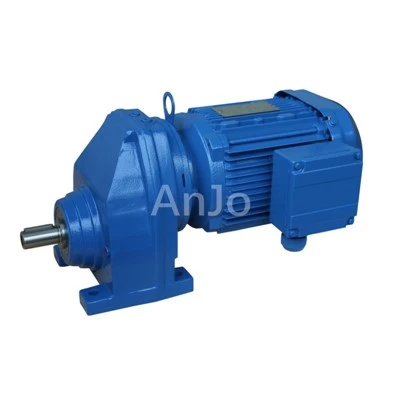

RX single stage helical gearbox

The housing is cast from high-quality gray cast iron, offering excellent overall rigidity and resistance to deformation. The gears are made of alloy steel and undergo carburizing, quenching, and precision grinding, resulting in high tooth-surface hardness and superior transmission accuracy, capable of handling continuous loads and routine, mild impact conditions.



02.

RXF single stage helical gearbox

It is primarily used in applications such as logistics conveying equipment, food packaging machinery, environmental water treatment, chemical mixing, textile printing, woodworking machinery, fans and pumps, and light metallurgical roller tables; it is particularly well-suited for drive operations requiring high output speeds and low-to-medium torque.



Other types of helical gearbox

 Compact in structure and small in size, it offers flexible installation options and is compatible with a variety of mounting methods;

 It ensures smooth transmission with low noise and minimal vibration, creating a production environment-friendly operation;

 Featuring hardened-surface gears that are highly resistant to wear and impact, it boasts a long service life and requires only simple routine maintenance;

It delivers rapid response speeds-free from the power lag typically associated with multi-stage transmissions-making it ideally suited for applications involving constant-speed operation or high-frequency start-stop cycles.

How to choose RX Single stage helical gear reducer

1. Prioritize Gear Ratio Compatibility: The maximum gear ratio for a single-stage reducer is 7. If the equipment requires a reduction ratio exceeding 7, a single-stage model is unsuitable; a multi-stage reducer must be selected instead to prevent issues such as insufficient torque or transmission stalling.

2. Maintain Adequate Torque Margin: For standard, constant-speed operating conditions, reserve a torque margin of 10%. For conditions involving high-frequency starts and stops or minor shock loads, a margin of 15%–20% is required to prevent gear wear and equipment overload caused by instantaneous load surges.

3. Select Models Based on Operating Conditions: For equipment requiring 24-hour continuous operation, single-stage models are the preferred choice; their advantages-specifically low heat generation and minimal energy loss-help reduce overall energy consumption and minimize the risk of failure. For equipment operating intermittently or under short-duration heavy loads, standard models can be selected as appropriate to meet specific requirements.

4. Match Environmental Protection Requirements: For general, dry workshop environments, standard IP54-rated models are suitable. For environments that are humid, dusty, or located outdoors, custom IP55-rated models can be specified to extend the service life of the equipment.

Why choose us

Solid Industry Experience: With over 10 years dedicated to the R&D and manufacturing of industrial reducers, we have cumulatively served thousands of manufacturing enterprises. We possess an intimate understanding of the operational pain points across various light industrial and general industrial sectors, enabling us to continuously iterate and optimize our products for superior adaptability.

Professional Technical Expertise: Our core R&D team specializes deeply in the field of mechanical transmission. By optimizing gear profiles and heat dissipation structures specifically for the characteristics of single-stage transmissions, we effectively resolve common industry issues such as insufficient torque and minor noise levels often associated with single-stage models.

Authoritative Certifications: Our entire product line holds ISO 9001 Quality Management System certification and CE European Safety certification. We strictly adhere to national manufacturing standards for the machinery industry, ensuring that our product quality remains fully compliant and consistently controllable.

Comprehensive Pre-shipment Inspection: Prior to leaving our facility, every piece of equipment undergoes a rigorous battery of tests-including noise analysis, torque calibration, efficiency verification, seal integrity checks, and both no-load and full-load operational trials. This 100% comprehensive inspection process guarantees that no defective products are ever shipped.
