Nmrv 040 Gearbox

Name: China Nmrv 040 Gearbox Manufacturers, Suppliers and Factory - Wholesale Nmrv 040 Gearbox - ANG Drive
Brand: ANJO
SKU: 290111746

NMRV040 gearbox is a speed reducer used to reduce input speed and correspondingly increase output torque. Their main function is to achieve speed conversion and direction adjustment (typically 90-degree rotation) in power transmission systems. The modular design facilitates direct connection with various types of motors (such as three-phase asynchronous motors and servo motors), making combination convenient.

Send Inquiry

Product Introduction

Models

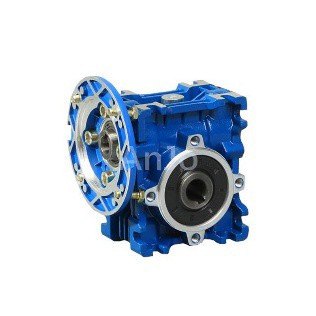

NMRV040 Reducer

Hollow shaft input with IEC Standard flange

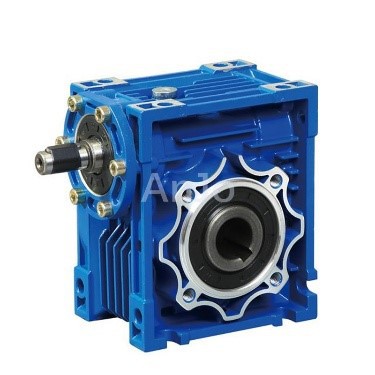

NRV040 Reducer

Solid shaft input

Common models

NMRV040 with square flange

NMRV/NRV040 with output flange

NMRV/NRV040 with solid output shaft

NMRV/NRV040 with extra input solid shaft

Features

Speed reduction and torque increase: The core function is to convert the high speed of the motor into the low speed required by the equipment, while outputting greater torque. It is especially suitable for driving heavy loads or starting loads that require "great force" but are not fast, such as mixers and conveyor belts.

Self-locking and safe: Thanks to the characteristics of worm gears, when the reducer stops, it can effectively prevent the load from driving the motor to rotate in the opposite direction due to its own weight, providing a simple and important safety guarantee for equipment such as hoists, gates, and inclined conveyors.

Products Description

Model	NMRV040 Gearbox
Ratio	5, 7.5, 10, 15,20, 25, 30, 40, 50, 60, 80, 100
Rated power	0.09~0.55kW
Input hollow shaft	Φ9, Φ11, Φ14
Input solid shaft	Φ11
Output hollow shaft	Φ18
Noise	60-68dB
Spare parts	Output flange, single output shaft, double output shaft, torque arm, dust cover
Color	Blue, silver, black, etc

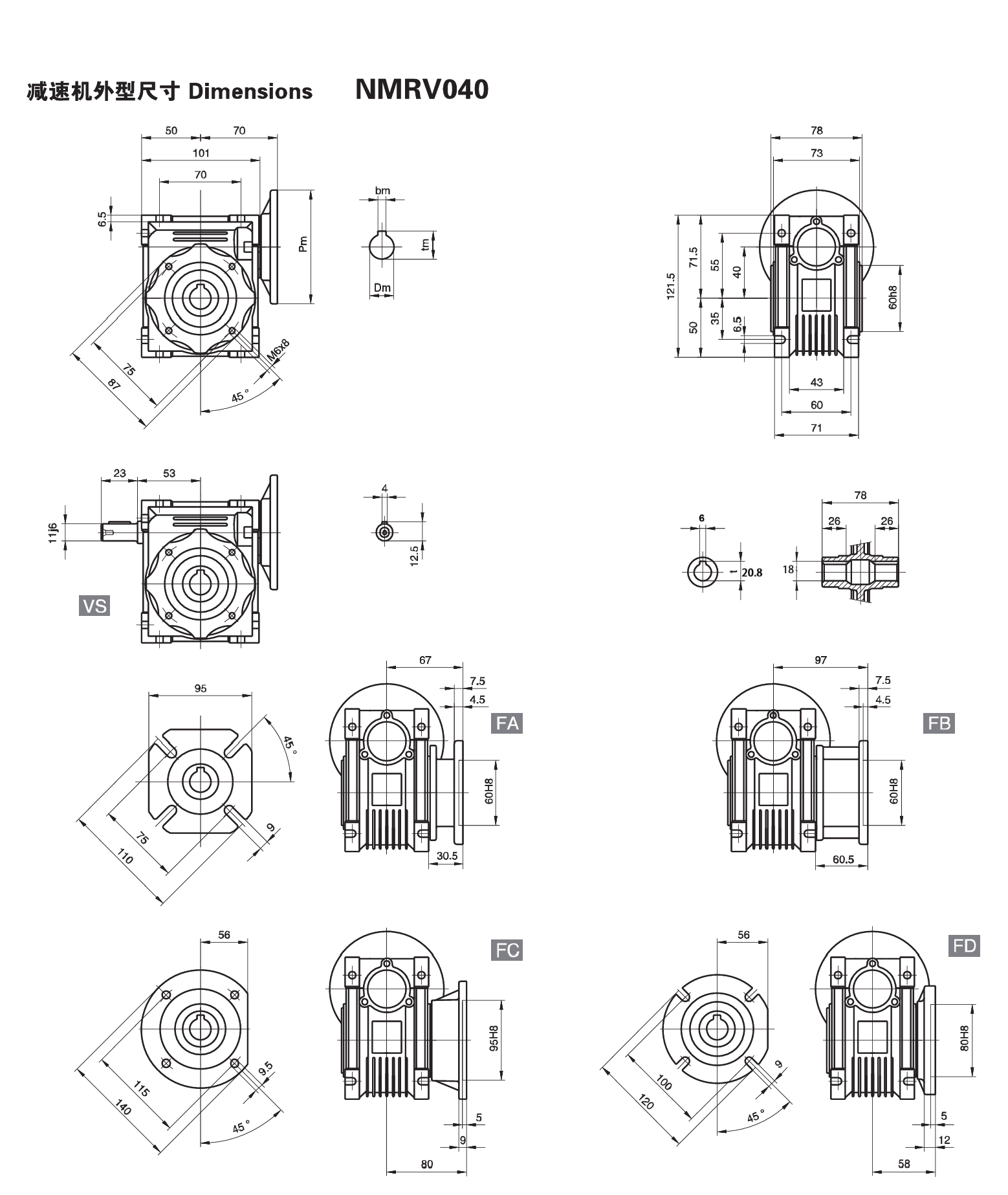

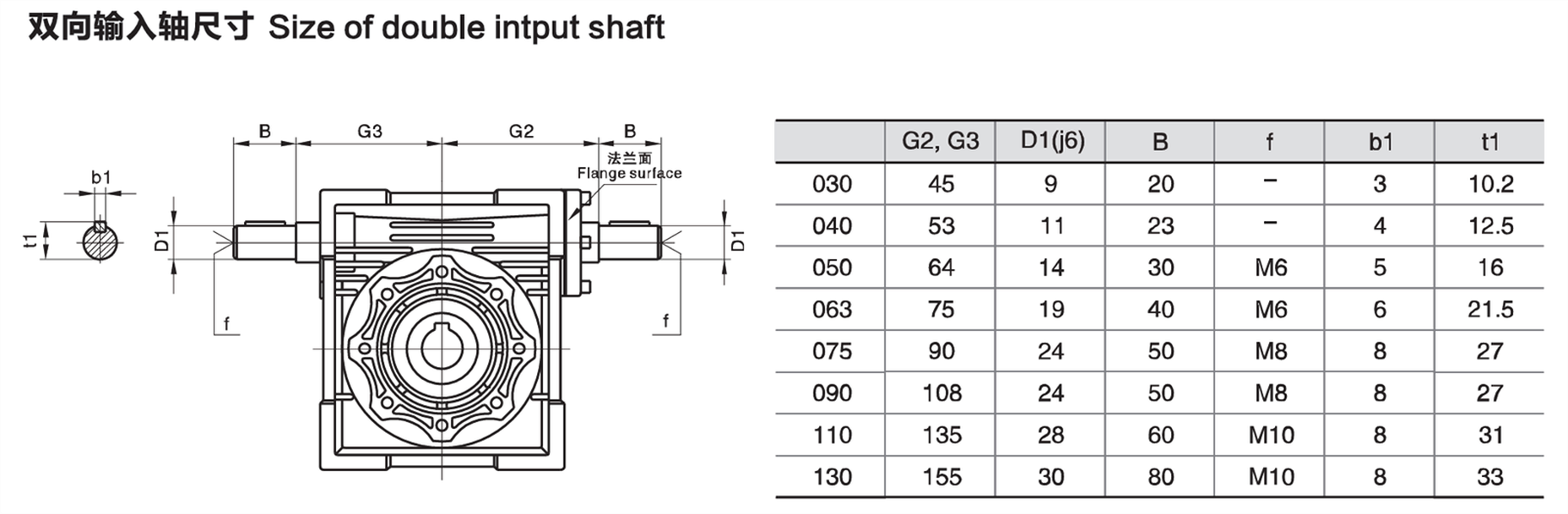

Drawings

motovario nmrv 050

motovario nmrv 040

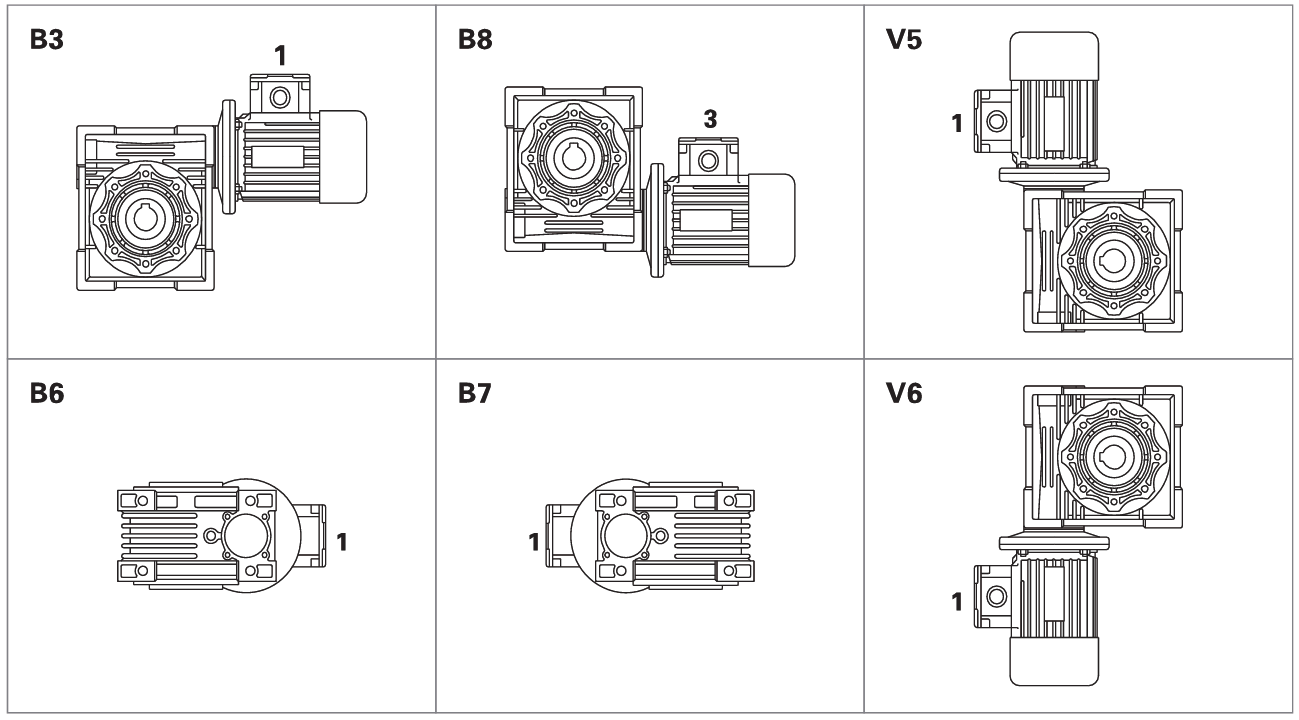

Installation position

motovario worm gearbox

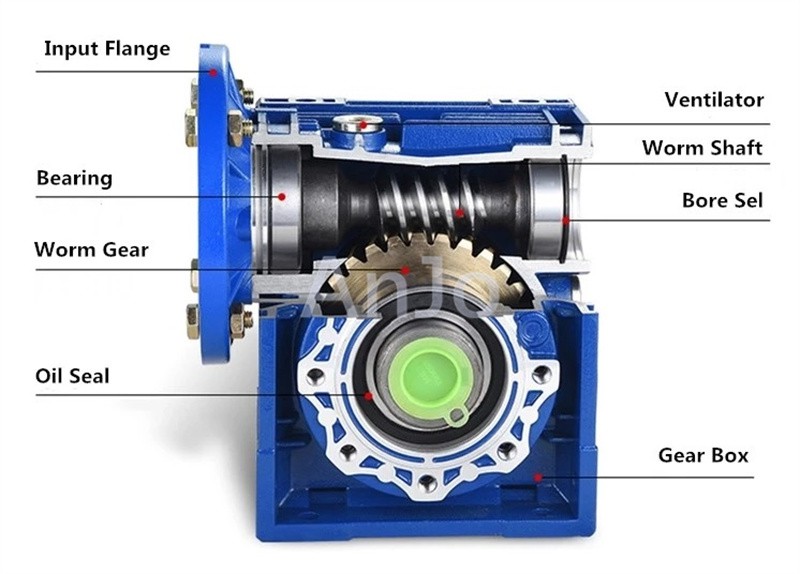

NMRV gearbox structure

nmrv050

Application

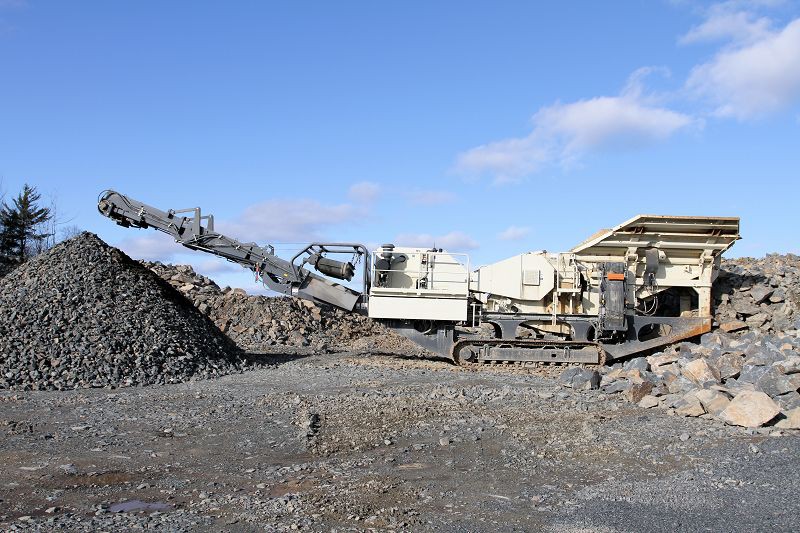

Mining and Metallurgy

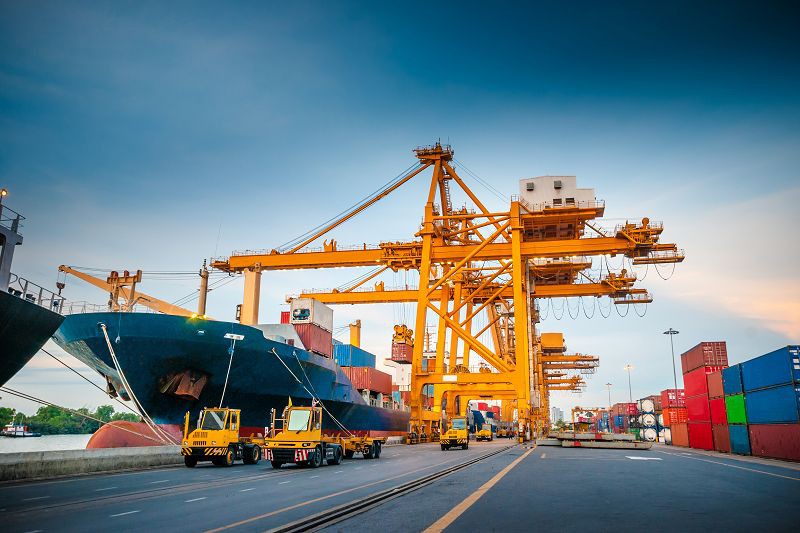

Lifting machinery

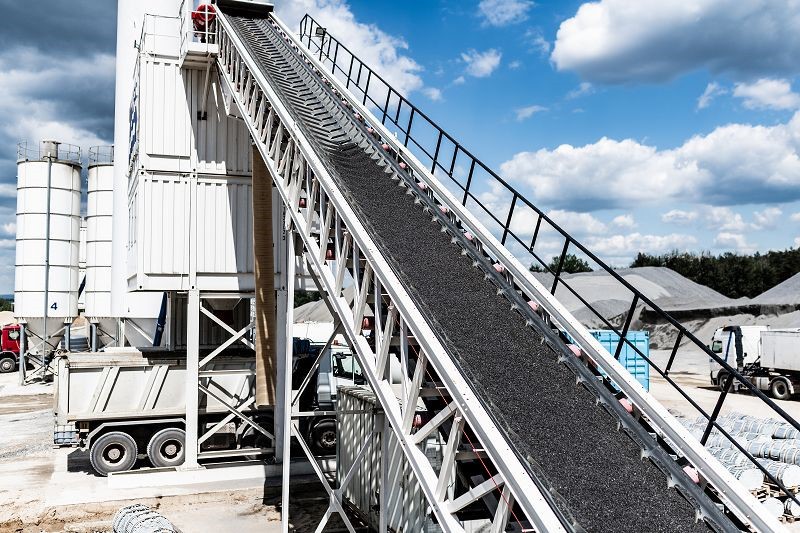

Construction and engineering machinery

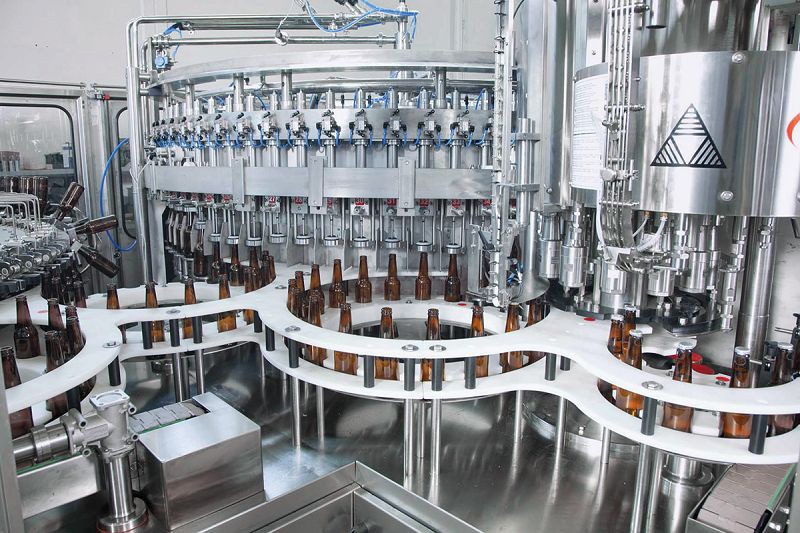

Food and beverages

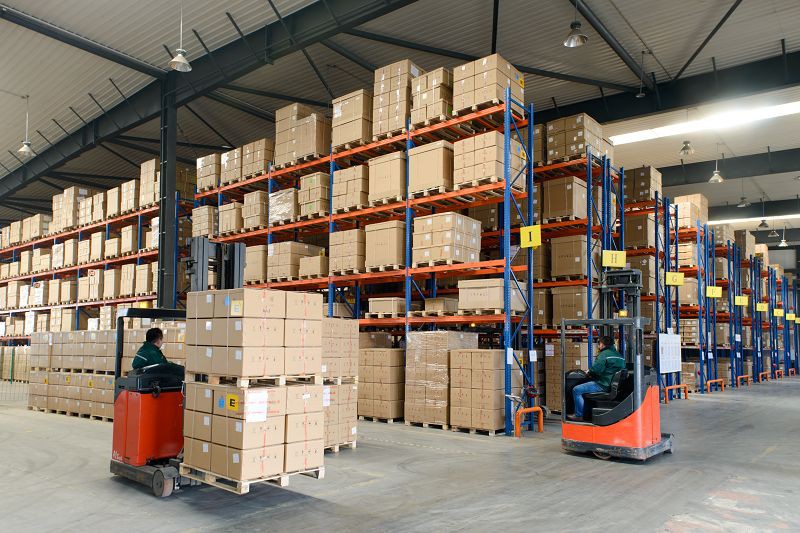

Logistics and Warehousing

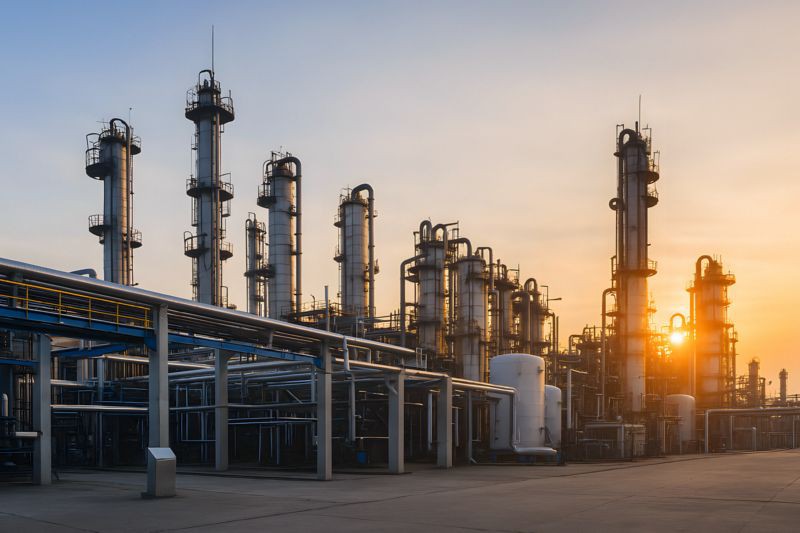

Chemical equipment

Agricultural machinery

Water conservancy system

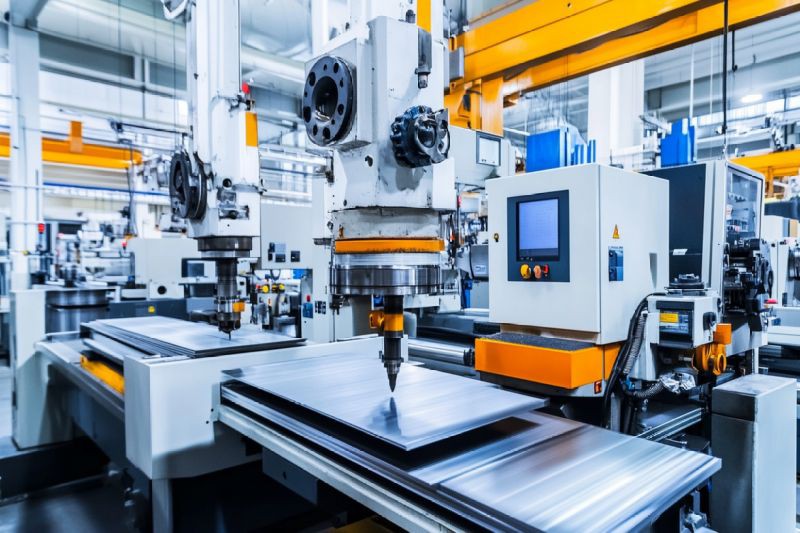

Machine tools and equipment

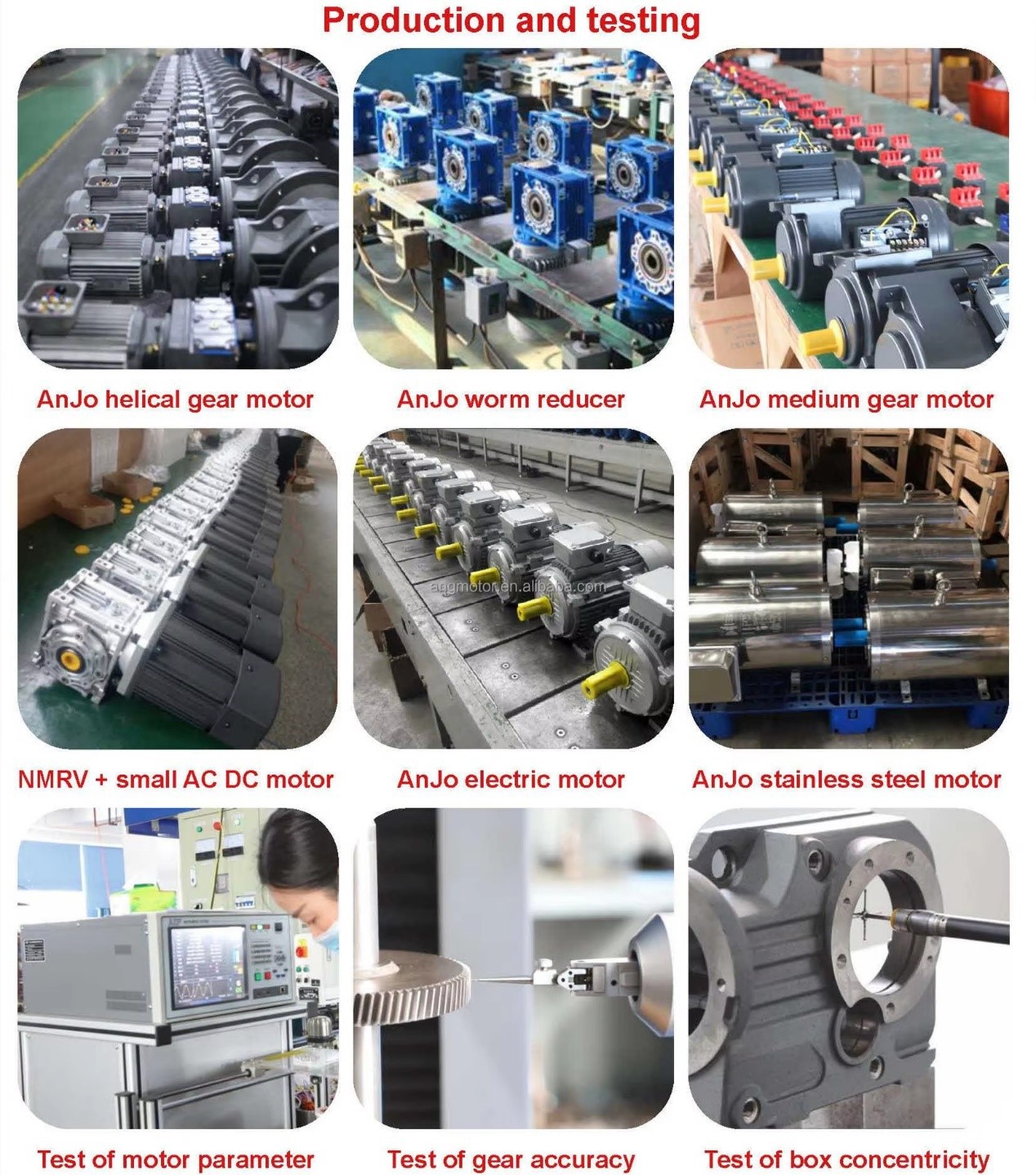

Our advantages

motovario nmrv 030

nmrv 040

nmrv 040 gearbox

product-1654-2232

Company Profile

ANJO

Product Range:

Gear reducers, worm gear reducers, and electric motors, etc.

Core Advantages

Customized production, extensive export experience;

Service Scope:

Integrated product export, technical support, and after-sales guarantee.

product-1-1

FAQ

Q1: How do I determine the appropriate speed ratio for an NMRV reducer when selecting one?

A1: First, determine the required output speed of the equipment. Single-stage NMRV speed ratios can range from 5:1 to 100:1. If a higher transmission ratio is required, a modular combination of two-stage models can be used. Simultaneously, the load torque must be matched to avoid long-term heavy-load operation of models with low speed ratios.

Q2: How should it be maintained?

A2: The key is to ensure sufficient and clean lubricating oil, and to change it regularly. Also, ensure the operating temperature does not exceed the allowable value and maintain ventilation for heat dissipation.
