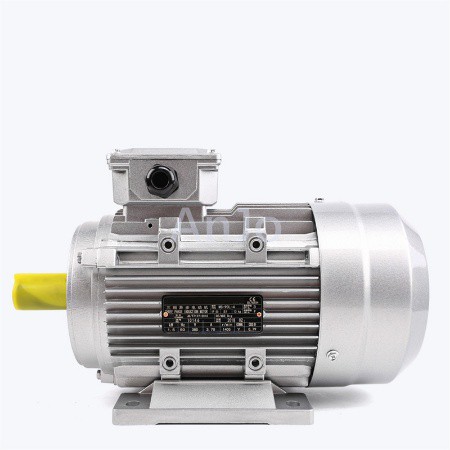

2hp Three Phase Motor
2hp Three phase motor is a three-phase induction (asynchronous) motor with a rated output power of 1.5 kilowatts (2 horsepower) that uses three-phase alternating current to generate a rotating magnetic field to drive a load. It features a simple structure, high efficiency, high starting torque, and reliable operation, making it one of the most common power sources for small and medium-sized industrial equipment, water pumps, fans, and various types of machinery.

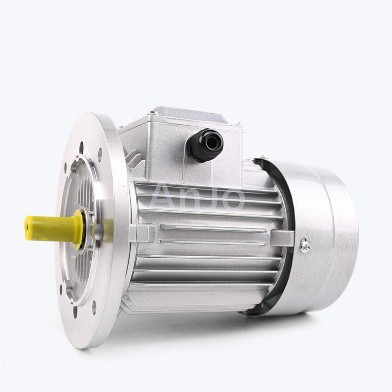

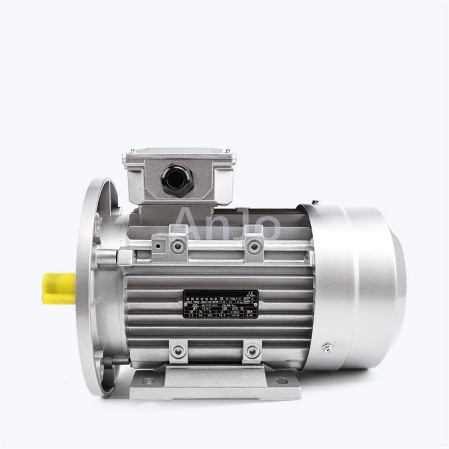

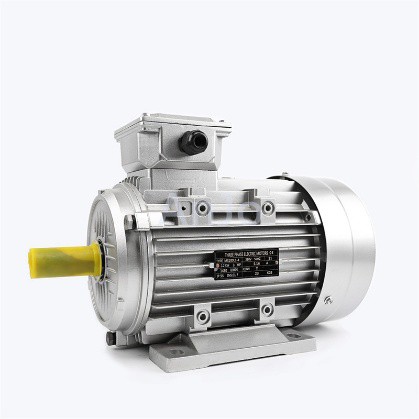

Models
Features
- Higher efficiency: The stator magnetic field is a rotating magnetic field, resulting in lower energy conversion losses. Compared to single-phase motors of the same power, efficiency is improved by 5%-15%, leading to greater energy savings over the long term.
- Great starting performance: It can be started directly without additional starting devices, and has a high starting torque, easily driving heavy-duty equipment and avoiding starting problems.
- Strong operational stability: The three-phase current is symmetrically distributed, resulting in uniform and pulsation-free torque output. The equipment operates with low vibration and noise, extending the lifespan of mechanical components.
Products Description
|
Model |
2hp Three phase motor |
|
Frame |
90 |
|
Power |
2 Horse power 1.5KW |
|
Speed |
3000rpm, 1500rpm, 1000rpm |
|
Voltage |
220/380V, 230/400V, or customization |
|
Frequency |
50HZ/60HZ |
|
Efficiency |
IE1, IE2, IE3, IE4 |
|
Motor shaft diameter |
Φ24 |
|
Cooling |
Fan |
|
Protection |
IP44/IP54/IP55 |
|
Housing |
Aluminum/Cast Iron |
|
Ambient temperature |
-15℃≤0℃≤40℃ |
|
Altitude |
No exceeding 1000 meters |
|
Duty |
S1 |

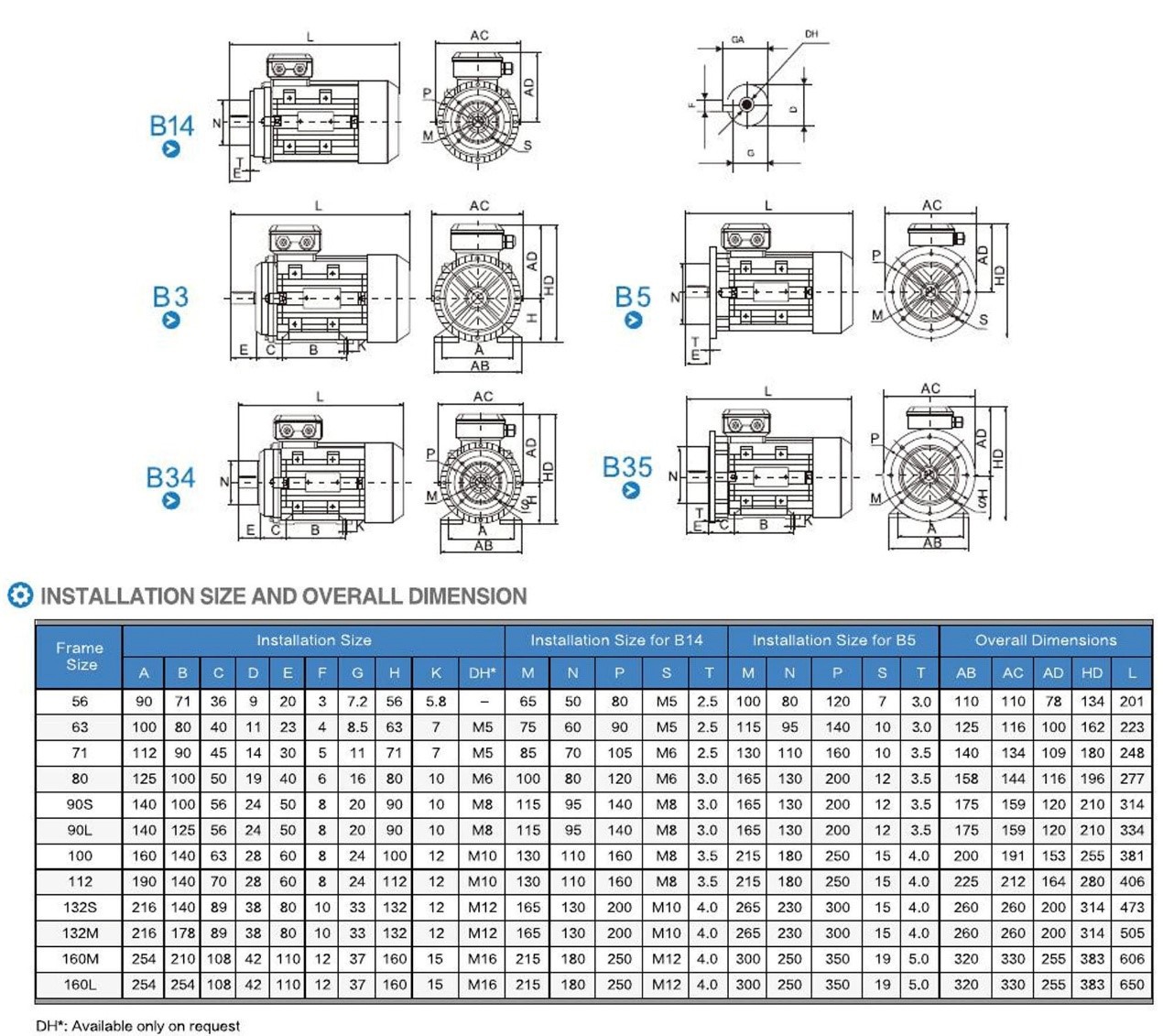

Drawings

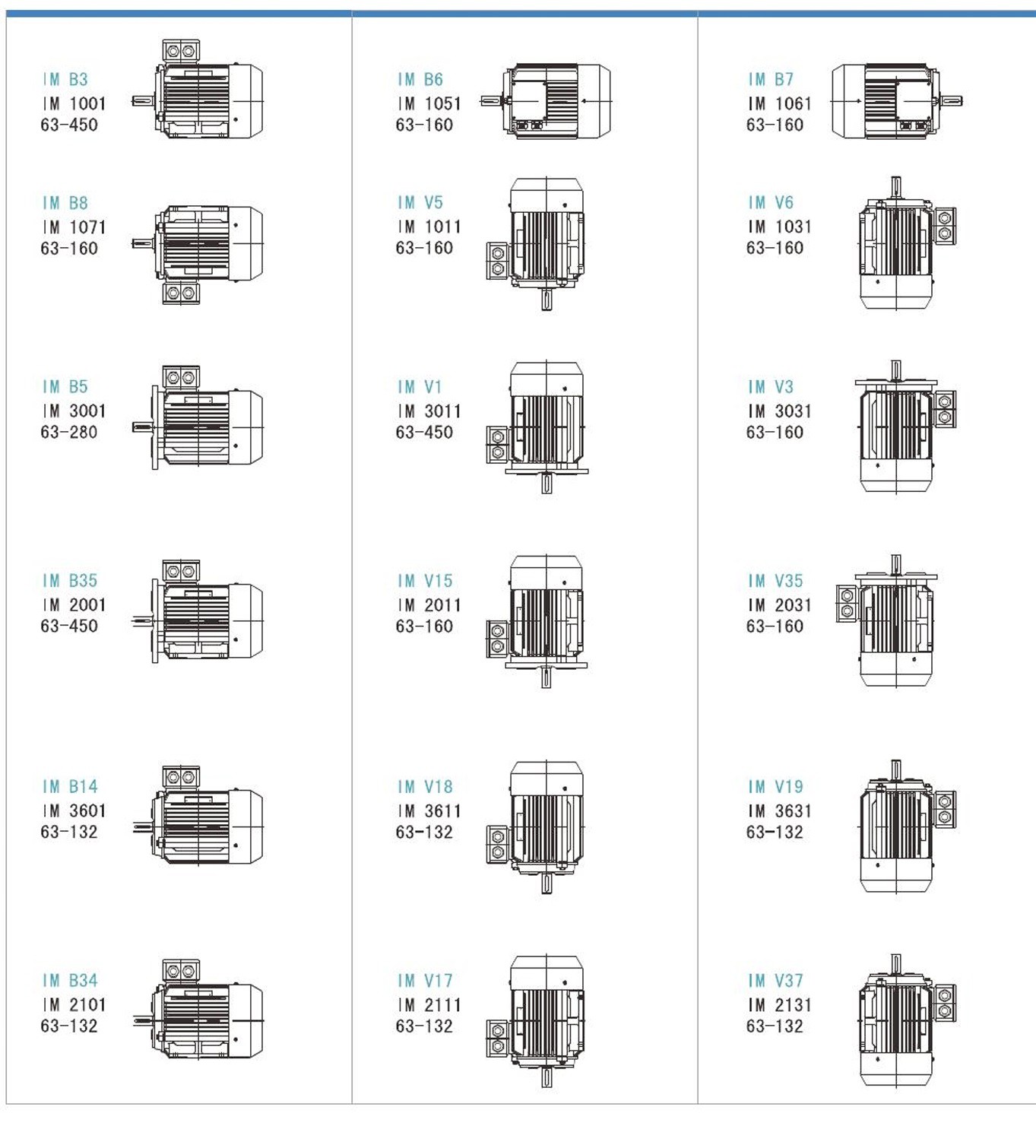

Installation position
Our advantages
Production

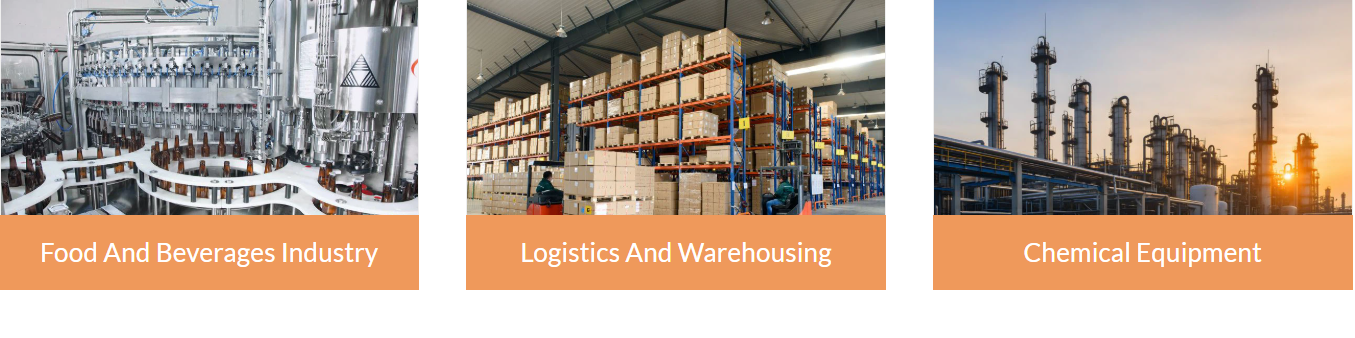

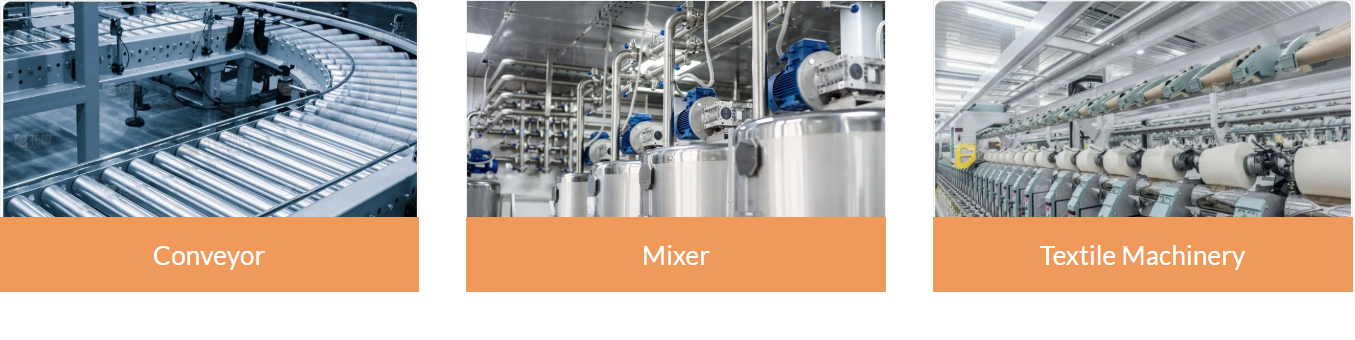

Application
Company Profile
FAQ
Q: What information do I need to provide when making an inquiry?
A: We recommend providing the following information to help us recommend the most suitable product for you:
Power supply: Single-phase or three-phase.
Main parameters: Such as power (kilowatts/KW or horsepower/HP), speed (RPM).
Mounting: For example, B3, B5, B14, etc.
Quantity: The expected number of units required.
Other special requirements: Such as protection class, voltage, frequency, whether variable frequency is needed, etc.
Q: How do I place an order?
A: Due to the variety of motor models, to ensure you receive a product that fully meets your requirements, we recommend confirming the model, power, speed, mounting type, color, and other specific information with us before placing an order to avoid unnecessary problems later.
Q: What kind of packaging is used for the products?
A: We use standard packaging of cardboard boxes + wooden pallets. Each motor is individually packaged, and anti-collision materials are placed between the motor and the packaging to ensure that the product arrives in perfect condition.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
