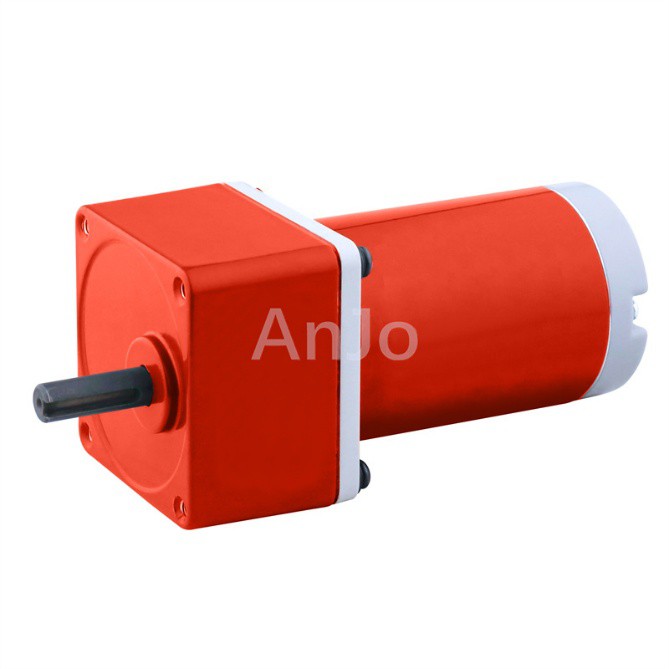

Brushed Dc Motor with Gearbox

Brushed DC motor with gearbox mainly consists of a brushed DC motor, a gear reducer, and a matching control circuit. The brushed DC motor includes components such as brushes, a commutator, a stator, and a rotor, while the gear reducer is composed of multiple gears. The brushed DC motor changes the direction of the current through the contact between the brushes and the commutator, causing the motor rotor to rotate continuously. The gear transmission system in the gear reducer, through the meshing of multiple gears, reduces the motor speed and increases the torque to meet different operating requirements.





• High Torque: The gearbox reduces the motor output speed through gear meshing, while proportionally increasing the torque according to the reduction ratio. This allows it to easily drive heavy-duty equipment and adapt to different operating speed requirements.
• Low Cost: Brushed motors have a simple structure and low mass production costs. Gearboxes often use gear meshing designs with mature manufacturing processes, resulting in a high overall cost-effectiveness, suitable for cost-sensitive, high-volume applications.
• Fast Start-up Response and Simple Control: No complex drive controller is required; it can be quickly started and stopped by simply connecting to a DC power supply. Speed ​​can be controlled through simple voltage adjustment, suitable for the simple control needs of small equipment.





Model	Brushed DC Motor with Gearbox
Structure	Parallel shaft
Construction	Permanent Magnet
Power	6W~800W
Input speed	2000rpm, 3000rpm
Ratio	2~300

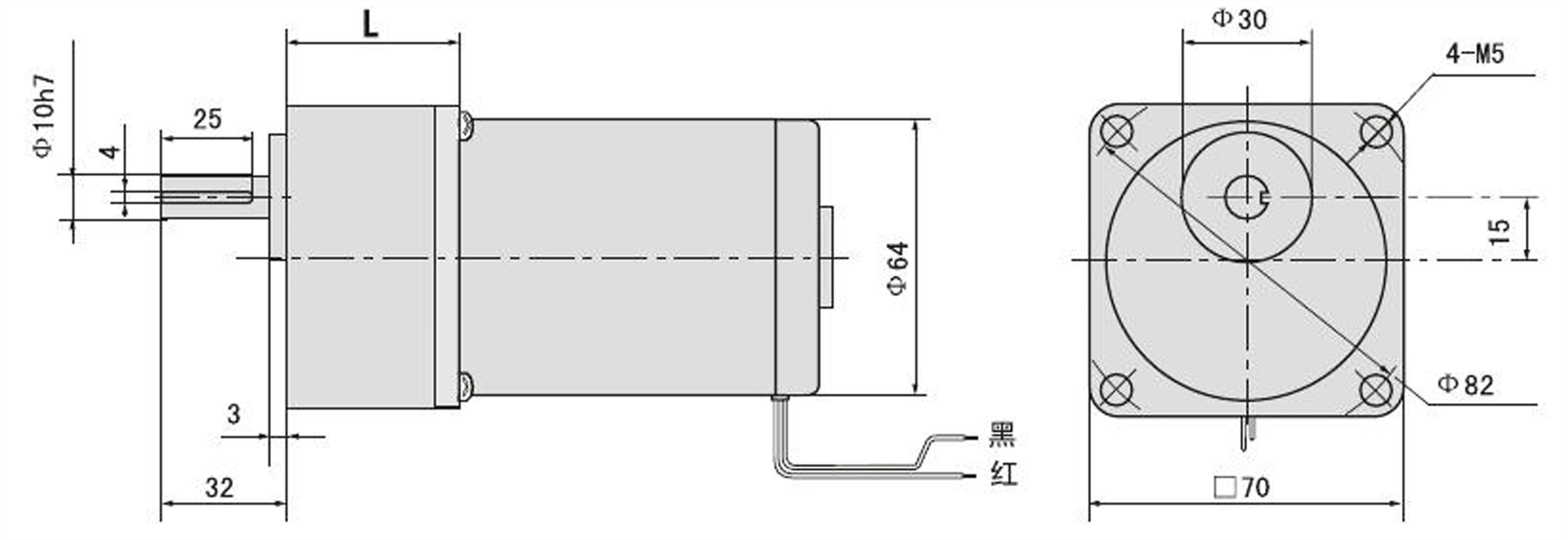

Flange	60mm/70mm/80mm/90mm/104mm
Commutation	Brushed
Protect Feature	Drip-proof
Motor voltage	12V, 24V, 48V, 90V, 220V
Accessories	Brake, encoder
