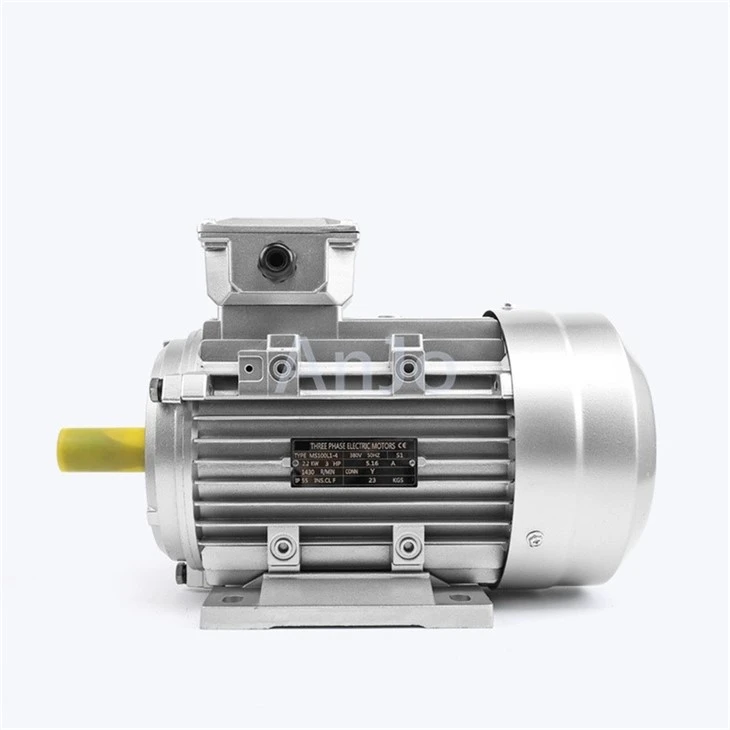

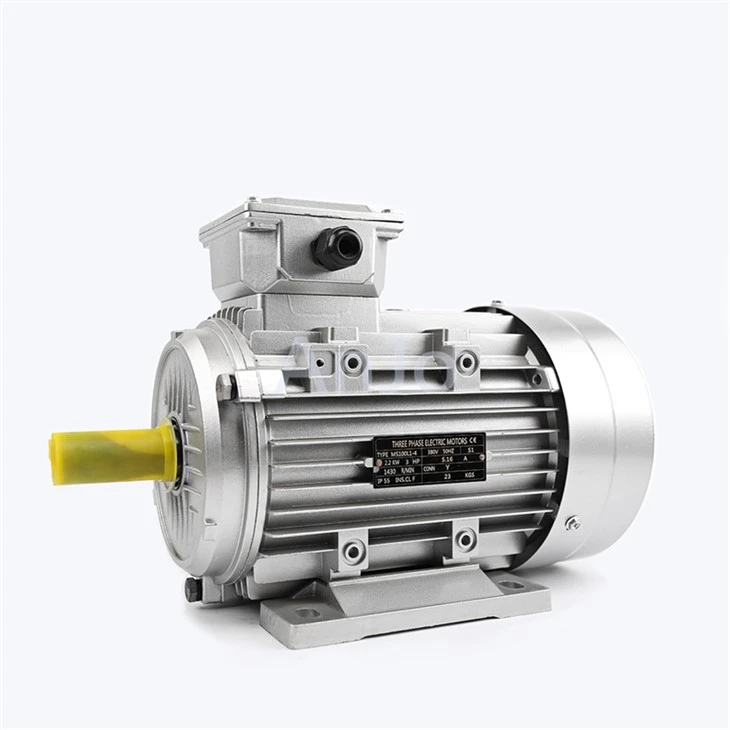

3 Phase Induction Motor
What is a 3 Phase Induction Motor?
Three-phase induction motors, also commonly known as three-phase asynchronous motors, are the most widely used general-purpose power equipment in the industrial field. They are compatible with standard 380V three-phase industrial AC power supplies. With their core advantages of brushless structure, maintenance-free operation, powerful performance, and reliable operation, they have become the core drive device in heavy industry, light manufacturing, mining, chemical, logistics, and HVAC industries. Compared to single-phase motors, three-phase induction motors offer more stable power output, greater torque, and stronger load capacity, making them suitable for high-power, high-load, and long-term continuous industrial operating conditions.
3 Phase Induction Motor Working Principle
The three-phase induction motor operates based on the phase characteristics of three-phase alternating current. When symmetrical three-phase alternating current is applied to the three sets of stator windings, a continuous and stable circular rotating magnetic field is automatically generated. It can start and run autonomously without capacitors or auxiliary starting devices. Relying on the principle of electromagnetic induction, the rotor cuts magnetic lines of force to generate induced current and electromagnetic torque, driving the equipment to run continuously.
Because the rotor speed is always slightly lower than the synchronous speed of the stator rotating magnetic field, it is called an asynchronous induction motor. The entire machine has no carbon brushes and no contact transmission structure, resulting in no mechanical wear during operation. This fundamentally reduces the probability of failure, achieving long-term stable operation. It is perfectly suited for industrial S1 continuous duty cycles and can operate under heavy loads 24 hours a day.
Industrial-grade powerful motor with stable heavy-duty performance. Utilizing a high-purity cold-rolled silicon steel core and optimized winding wiring technology, it features low magnetic loss, high energy conversion efficiency, high starting torque, and strong overload capacity. It easily handles full-load starts and intermittent heavy-load impacts, providing smooth, uninterrupted power output. Suitable for various high-load industrial equipment, it eliminates problems such as stalling, downtime, and insufficient power.
High efficiency and energy saving, reducing long-term operating costs. All models meet IE1~IE3 energy-saving standards. High-efficiency models have energy conversion efficiencies far exceeding ordinary industrial motors, significantly reducing no-load and load losses. In factory assembly lines and long-term continuous operation scenarios with large equipment, it can significantly reduce industrial electricity consumption, saving enterprises substantial operating electricity costs over the long term, resulting in outstanding energy-saving economic benefits.
Fully enclosed protection, suitable for complex industrial conditions. The entire machine adopts a fully enclosed cast iron body structure, standardly equipped with IP54/IP55 high protection ratings, effectively preventing dust, water splashes, oil stains, and foreign object intrusion. It is perfectly suited for harsh factory conditions with high dust, high humidity, and slight corrosion. With insulation class up to F/H, it is resistant to high temperature, aging, and high voltage breakdown. It is not easy to burn out or leak electricity during long-term high-temperature operation, and has an extremely high industrial safety factor.
|
Model |
Three phase motor |
|
Frame |
56~355 |
|
Power |
0.09~335KW |
|
Speed |
3000rpm, 1500rpm, 1000rpm |
|
Voltage |
220/380V, 230/400V, 380/660V, 400/690V, etc |
|
Frequency |
50HZ/60HZ |
|
Efficiency |
IE1, IE2, IE3, IE4 |
|
Cooling |
IC411 |
|
Protection |
IP44/IP54/IP55 |
|
Housing |
Aluminum/Cast Iron |
|
Wire |
100% copper |
|
Color |
Blue, silver, or customization |
|
Duty |
S1 |
Company Profile
Q1: Does the three-phase induction motor support 24-hour continuous operation?
A1: Yes. All three-phase induction motors in this series adopt the S1 national standard continuous duty system, equipped with an F-class high-temperature resistant insulation system and a high-efficiency self-ventilated cooling structure. Within the rated load range, they can achieve 24-hour uninterrupted stable operation with controllable temperature rise and no overheating faults, fully adapting to the long-term operation needs of factory assembly lines.
Q2: Can the three-phase motor be used with a frequency converter?
A2: Standard models are suitable for conventional frequency converter speed control scenarios. For long-term low-frequency, high-frequency, and frequent speed adjustment conditions, we can provide dedicated frequency converter three-phase induction motors with reinforced insulation and independent heat dissipation structures, effectively avoiding overheating and breakdown problems under frequency converter conditions, offering a wider speed range and more stable operation.
Q3: How to choose between IP54 and IP55 protection ratings? What are the suitable operating conditions?
A3: IP54 provides basic industrial protection, offering dust and splash protection, suitable for ordinary dry and conventional workshop conditions; IP55 offers even higher protection, providing protection against high-pressure water spray, complete dust protection, and oil stains, making it suitable for harsh industrial scenarios such as high dust levels, high humidity, water washing equipment, and open/semi-open environments, with enhanced industrial durability.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
