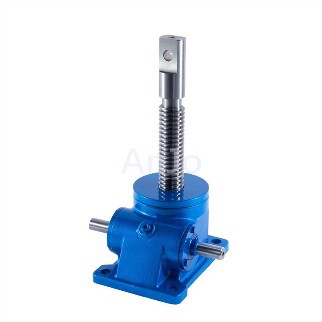

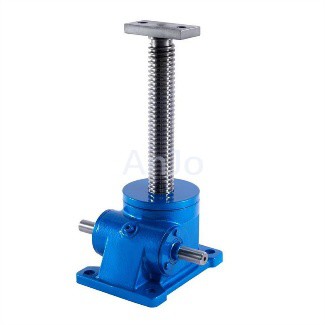

Screw Jack Lift

Screw jack lift are responsible for providing reliable, stable, and controllable linear motion. As a standardized module, they are widely used in applications requiring precise height adjustment, heavy load lifting, position adjustment, or pressure control, such as automated production lines, installation and positioning of heavy equipment, stage machinery lifting, and solar tracking systems. They are a key fundamental component for achieving linear motion in mechanical automation.









• High load capacity and compact structure: capable of delivering massive thrust output ranging from several kilograms to several tons within a very small installation space.

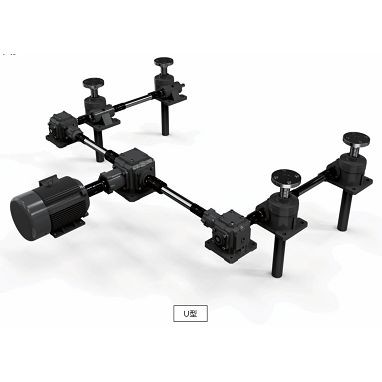

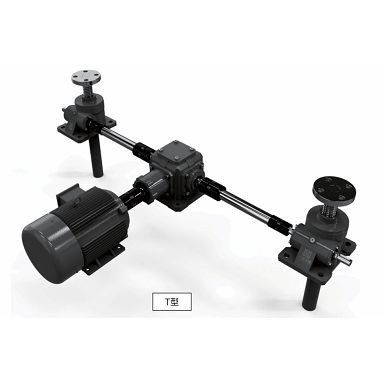

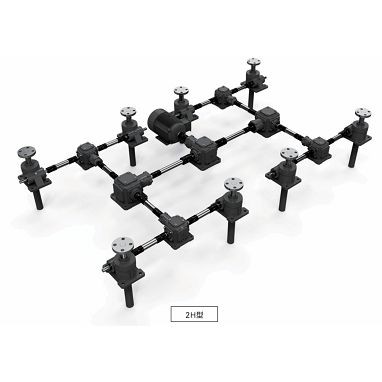

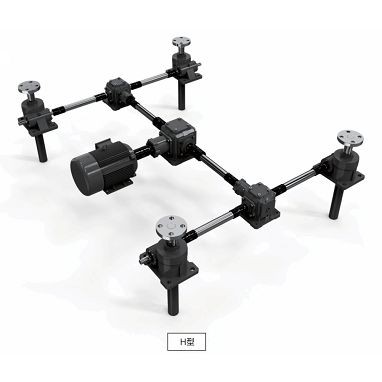

• Excellent synchronization: By using multiple lifting platforms driven by the same motor or linked through a control system, precise synchronous lifting at multiple points can be easily achieved, a feat difficult to match with hydraulic and pneumatic systems.
• Robust construction: The all-metal casing provides excellent sealing and can withstand harsh industrial environments such as high and low temperatures, dust, humidity, and corrosive conditions, resulting in low maintenance requirements and a long service life.





Model	Screw jack lift
Ratio	5~32
Input power	0.12~15kW
Input speed	1400rpm
Output speed	5.86~1000rpm
Thread size	Tr16*4~Tr160*23

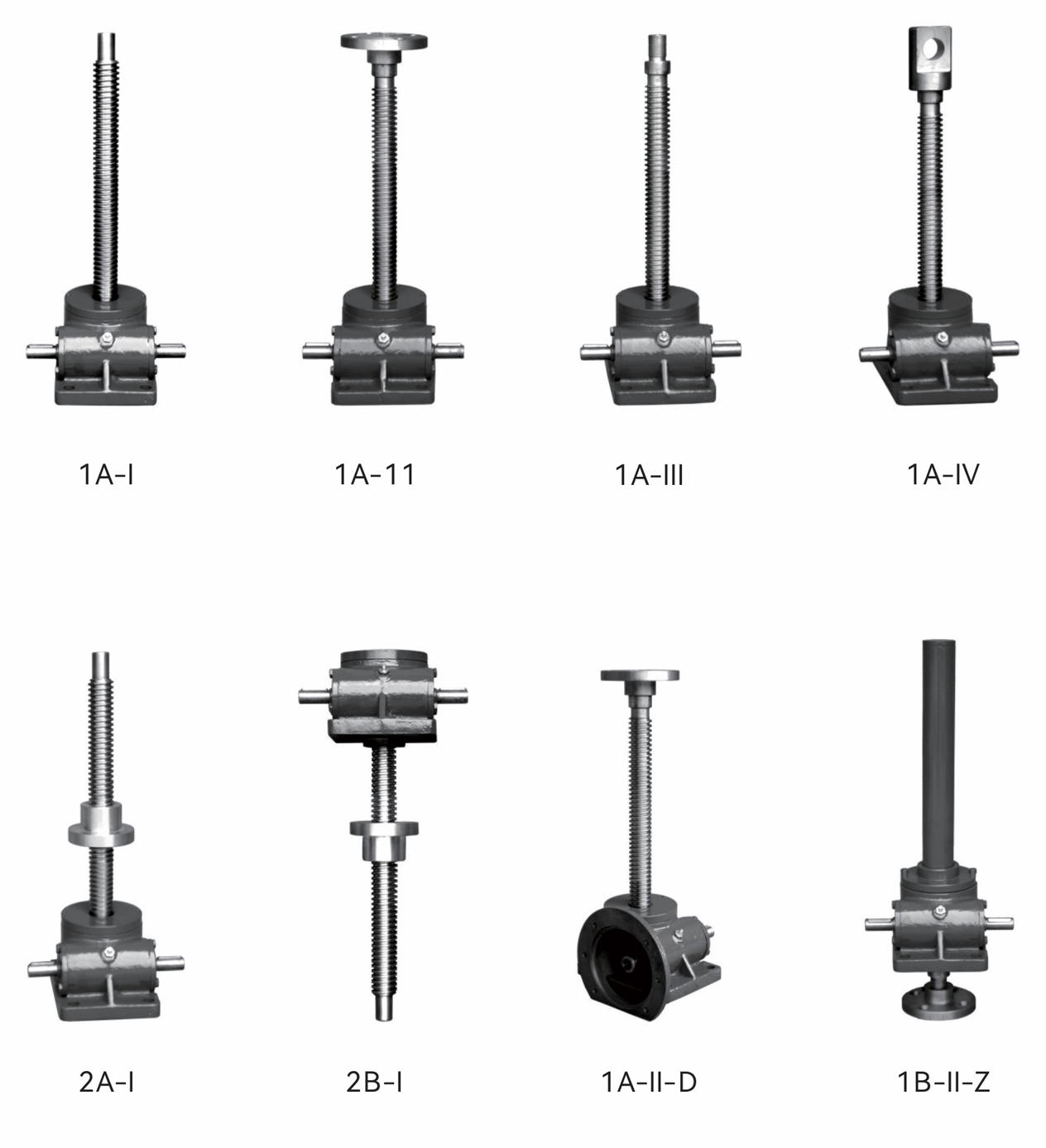

Types	Cylinder Type, Flange Type, Thread Type, Flat Head Type
Optional	Handwheel
Warranty	1 year
