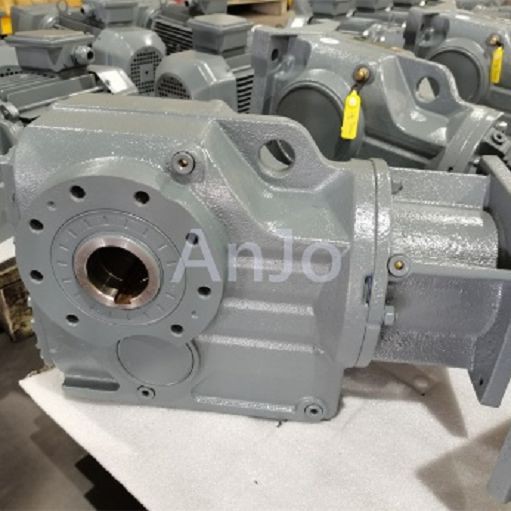

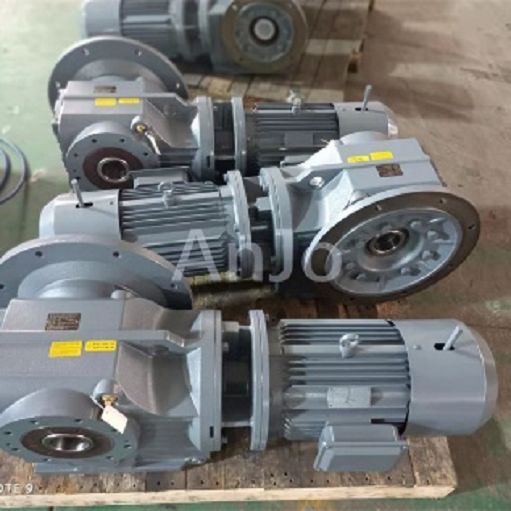

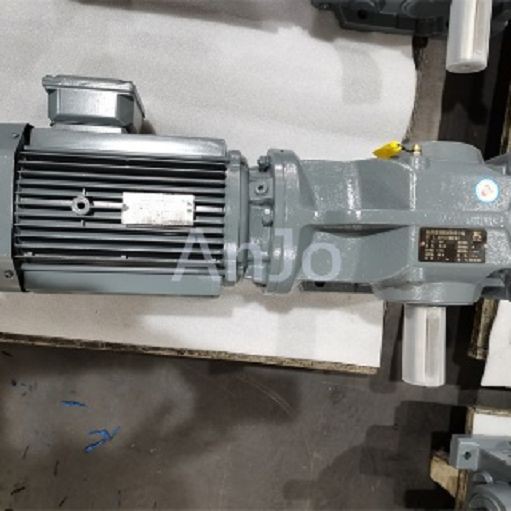

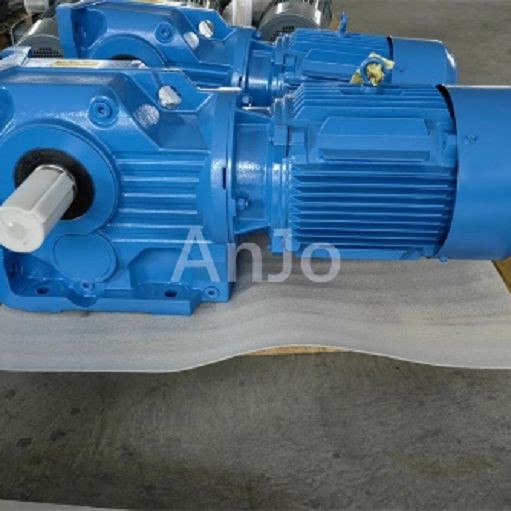

Helical Bevel Gear Motor

Helical bevel gear motor is integrated transmission devices that combine helical gear and bevel gear reduction mechanisms. They consist of a drive motor and a two-stage (or multi-stage) gear reduction gearbox, which reduces output speed and increases output torque through gear meshing. This design is suitable for industrial applications with diverse requirements regarding installation space, transmission direction, and load capacity.





Changing the direction: This is the core function of bevel gears. It allows for flexible motor mounting, saving space and adapting to complex mechanical structures.

Smooth operation and low noise: The helical meshing of helical gears results in a continuous and smooth transmission process, with significantly less impact and vibration than straight gears, thus producing less noise during operation.

High load capacity and long lifespan: Helical gears have more teeth engaged simultaneously and a larger contact area between the teeth. Therefore, they can transmit greater torque, the stress on the gears is more evenly distributed, and wear is reduced, resulting in a longer service life.

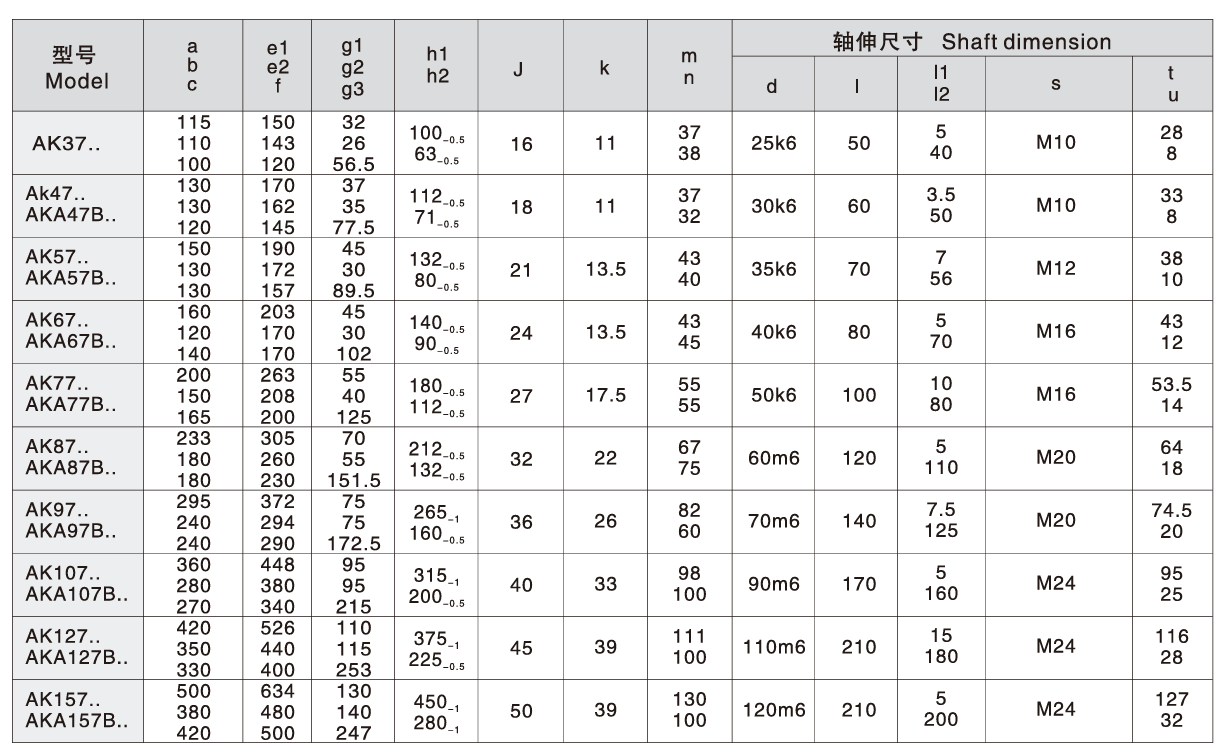

Model	Helical Bevel Gear Motor

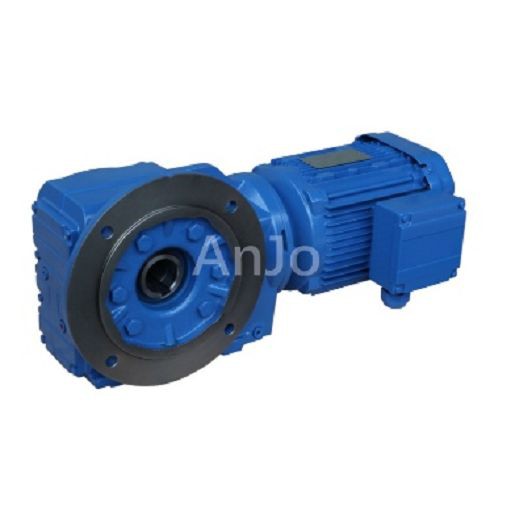

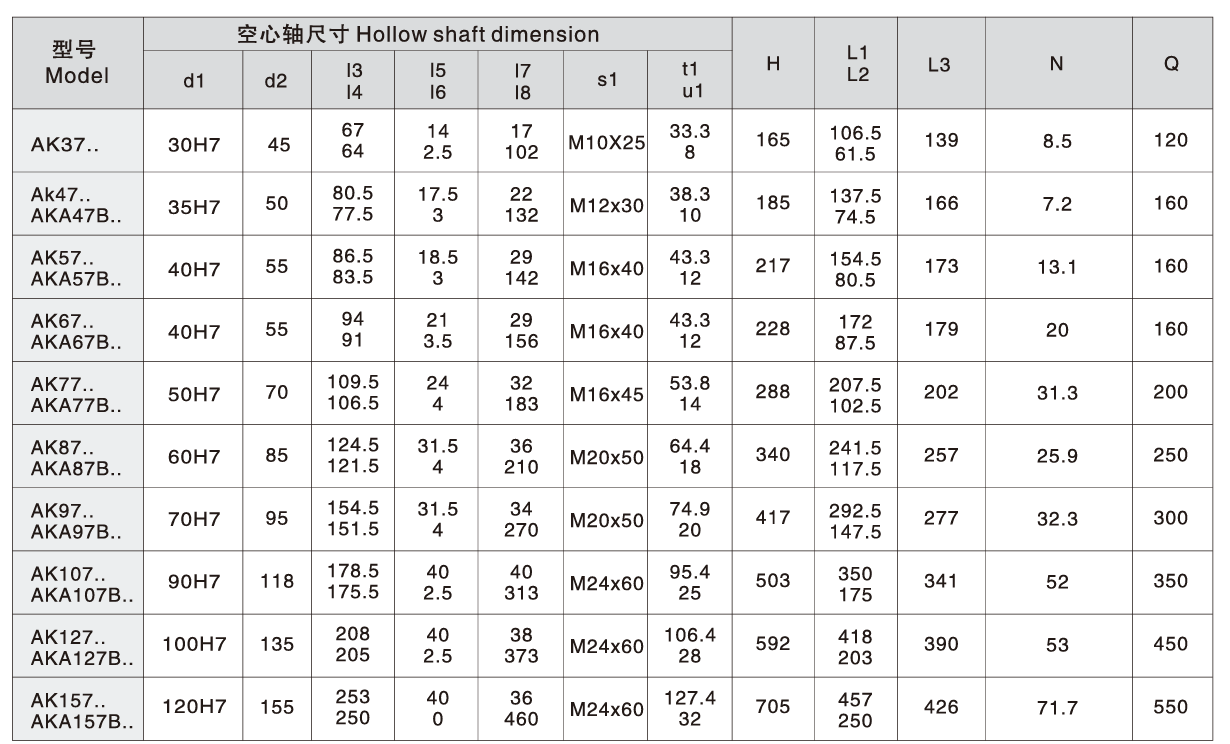

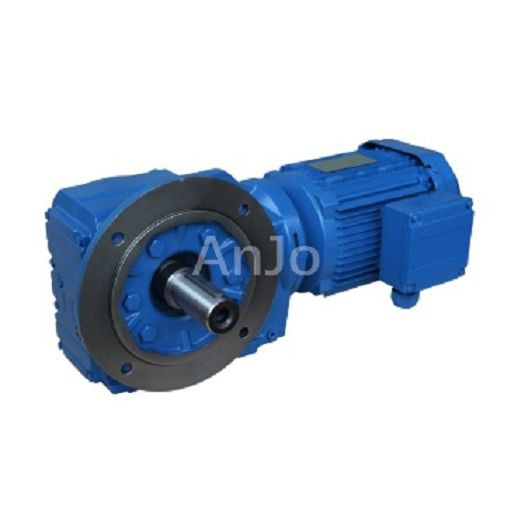

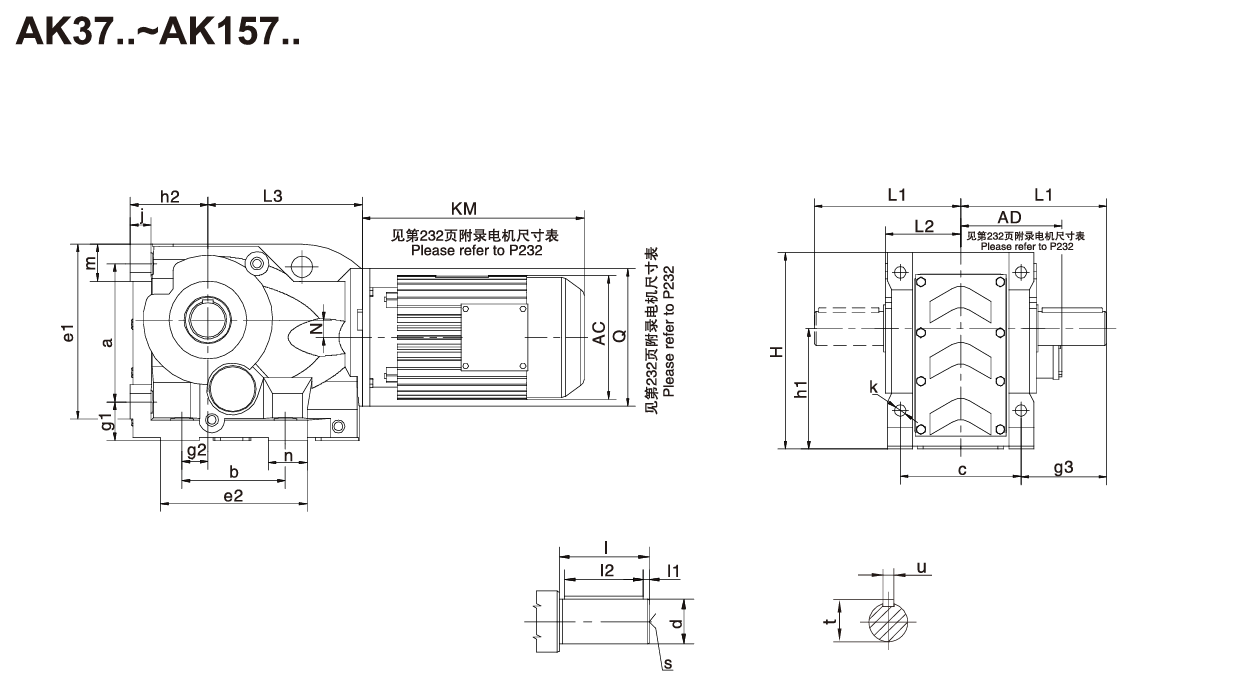

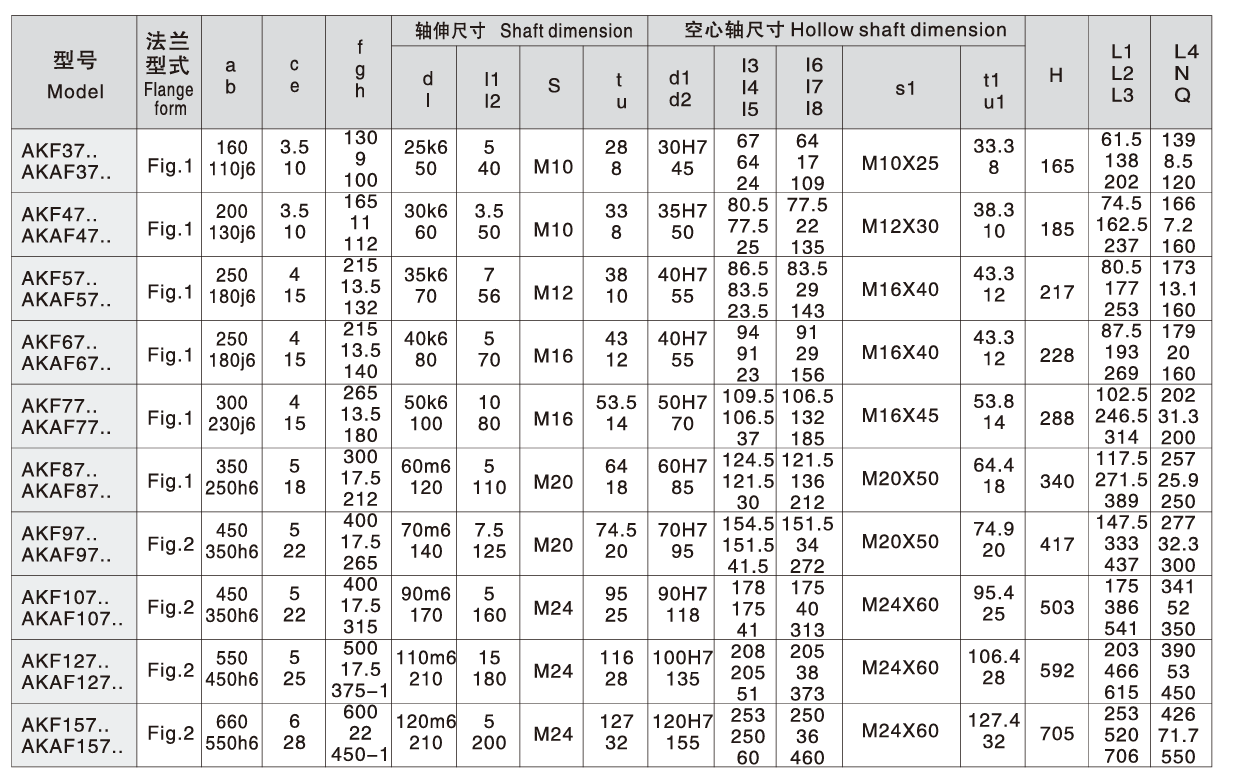

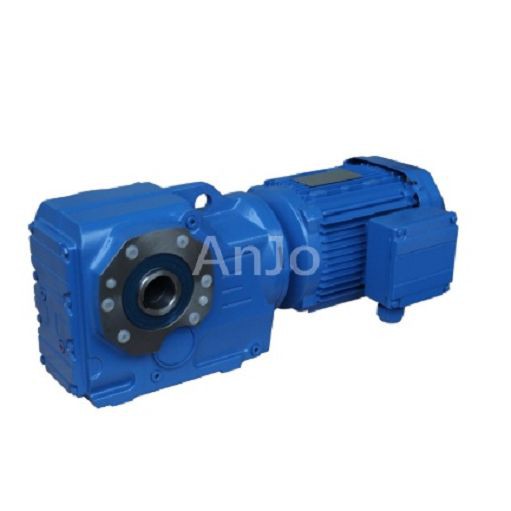

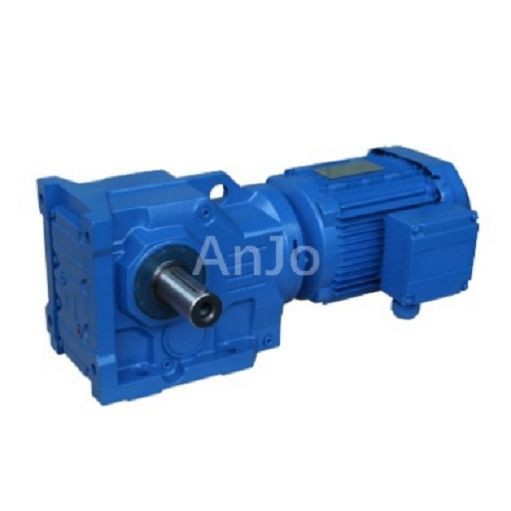

Type	Solid output shaft Hollow output shaft Solid output shaft with output flange Hollow output shaft with output flange Shrink disk type B14 flange type
Power	0.18 to 200KW
Motor speed	1380rpm
Ratio (i)	3.98~179.86
Output speed	7.3RPM~352RPM
Voltage	220V, 230V, 380V, 400V, 660V, 690V
Input	Direct motor connection, pulley, input shaft, flange input.
Optional accessories	torque arm, back stop, brake, adaptor, heat protector
Efficiency	Up to 98%
