Dc Servo Motor

A DC servo motor is a type of DC motor that can be precisely controlled (including position, speed, and torque) through a closed-loop control system. Its core characteristic is "servoing," meaning it "obeys commands," responding quickly and accurately to control signals and automatically correcting any errors between the actual output and the target value.

• High precision: Closed-loop feedback control ensures minimal speed and position errors (positioning accuracy up to 0.01°, speed accuracy ±0.1 rpm);
• Fast response: Small electromechanical time constant allows for rapid tracking of command signal changes (response time in milliseconds);
• Wide speed range: Speed ​​can be continuously adjusted from 0 to the rated speed, and even achieve low-speed, high-torque operation;
• High torque-to-inertia ratio: Large output torque and strong overload capacity (can withstand short-term overloads of 2-3 times the rated torque);
• Good controllability: Linear control of speed and torque can be achieved through voltage/current regulation, making it easy to integrate with control systems.



Item	Specifications
Type	DC Servo Motor
Rated Voltage(V)	DC24V~DC320V
Power	50W~5000W
Speed	1000rpm~3000rpm
Motor Mounting	Flange
Frame	40mm, 60mm, 80mm, 110mm, 130mm, 180mm
Line Resistance(Ω)	0.07±10%(25℃)
Line Inductance(mH)	0.17±10%
Line Back EMF.(V/krpm)	3.8±10%
Torque Coefficient(N.m/A)	0.06±10%
Feedback Component	Incremental Encoder, 2500PPR
Rotation Direction	CW/CCW
Insulation Resistance(MΩ)	DC500V,>20MΩ
Noise(dB)	≤60dB,None Special Noise
Time rating	Continuous
Ambient Temperature	0～+40℃
Ambient Humidity	20～80% No Condensation
Enclosure	Totally Enclosed, Self-cooled, IP65(except for shaft opening ).







Conveyor

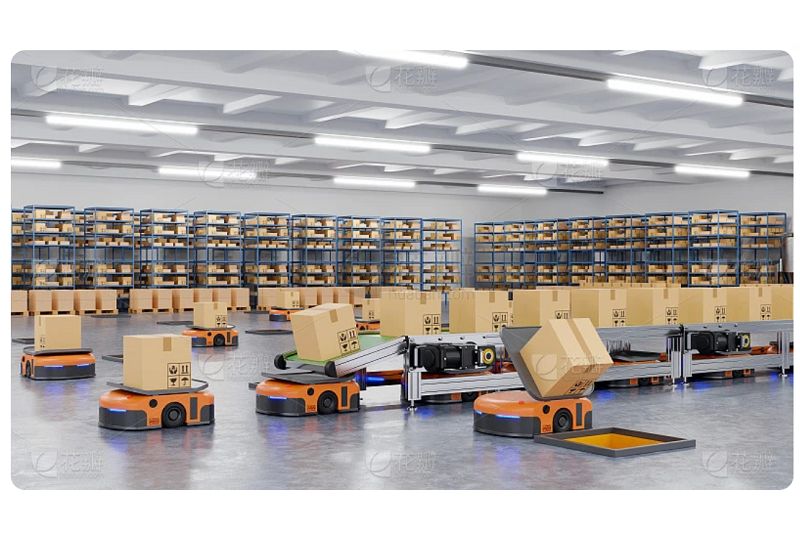

Automation system

Textile machinery

Food and beverages industry

Logistics and Warehousing

Chemical equipment

Agricultural machinery

Water conservancy system

Machine tools and equipment
