3hp Single Phase Motor

3hp single phase motor represents the "golden power point" in single-phase power applications, achieving an ideal balance with its approximately 2.2 kW rated power efficiency. It employs an enhanced dual-capacitor (start/run) design, providing strong starting force and stable operating performance, sufficient to drive medium-sized equipment with high torque requirements. It is commonly found in core equipment such as large water pumps, commercial mixers, industrial fans, and woodworking machinery.

B3 Foot mounted

B5 flange mounted

B14 Small flange mounted

B34 Foot and small flange mounted

B35 Foot flange mounted

• Maintenance is simple. Routine maintenance typically only requires cleaning and lubrication, with low technical requirements.
• Common faults are easy to diagnose. The operating principle is straightforward, and problems such as start-up failure and overheating are easy to troubleshoot.
• Spare parts replacement costs are low. Consumable parts such as capacitors and bearings are inexpensive and readily available on the market.

Products Description



Model	3hp Single phase motor
Frame	2poles-frame90; 4poles-frame100
Power	3HP 2.2KW
Speed	3000rpmin, 1500rpmin, 1000rpmin
Voltage	110V/220V/230V, or customization
Frequency	50HZ/60HZ
Motor shaft diameter	Φ28
Cooling	Fan cooling
Protection	IP44/IP54/IP55
Housing	Aluminum/Cast Iron
Wire	100% copper
Color	Blue, silver, or customization
Duty	S1
Capacitor	Dual capacitors (for start and running)

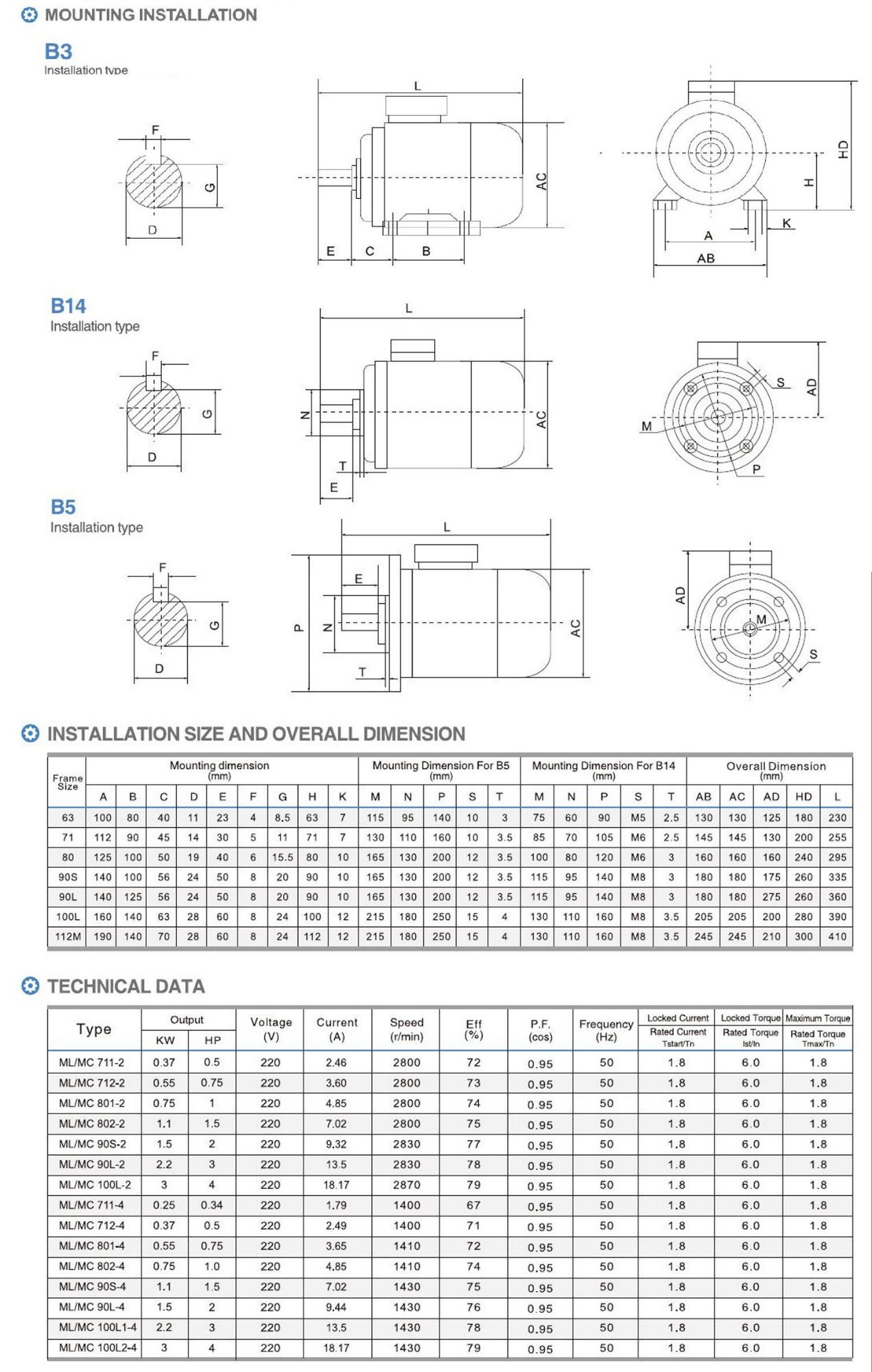

Drawings







Installation position





Our advantages



Production









Application



Company Profile







FAQ
