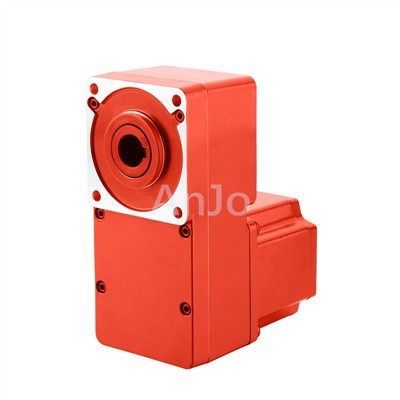

200w Bldc Flat Gear Motor
The 200W brushless DC flat geared motor is an integrated transmission device that combines brushless DC drive technology, a precision reduction mechanism, and a flat structural design. With a 200W rated power output as its core performance benchmark, it combines the high efficiency and long lifespan characteristics of brushless motors, the high torque advantages of a gearbox, and the space-saving capabilities of a flat design. This makes it an ideal power solution for applications in industrial automation, smart homes, and medical equipment, where there are stringent requirements for power, space, and stability.
- Flat Structure: The motor and gearbox adopt an axially compact design, resulting in a very thin overall profile. This solves the installation difficulties of traditional motors in space-constrained environments (such as robot joints and precision equipment).
- High Torque: Despite its flat form factor, it achieves high torque output through a precision reduction gearbox. It provides powerful performance in a compact size, meeting direct drive requirements without the need for additional transmission devices.
- High Efficiency: The brushless motor itself is highly efficient, and coupled with an optimized reduction mechanism, the system efficiency is outstanding. This reduces energy consumption and heat generation, making it particularly suitable for battery-powered mobile devices (such as robotic vacuum cleaners and drones).
|
Model |
200W BLDC Flat Gear Motor |
|
Type |
Brushless DC gearmotor |
|
Power |
200 Watt |
|
Flange |
90mm*90mm, 100mm*100mm |
|
Current |
6.5~11A |
|
Motor speed |
2000r/min, 3000r/min |
|
Output speed |
10~600rpm |
|
Torque |
2.74~5.5Nm |
|
Motor voltage |
12V, 24V, 48V or customized |
Frame 90*90 200W BLDC Flat Gear Motor
Frame 90*90 200W BLDC Flat Gear Motor with brake
Frame 104*104 200W BLDC Flat Gear Motor
Frame 104*104 200W BLDC Flat Gear Motor with brake
*more size please contact our sales team
Q1: How to control the speed and position of a 200W brushless DC geared motor?
A1: It must be used in conjunction with a dedicated brushless DC motor driver (controller). Speed is adjusted by sending PWM signals to the driver, and closed-loop position control is achieved through encoder feedback.
Q2: Does "brushless" mean that a brushless geared motor is completely maintenance-free?
A2: While the main moving parts (brushless) are indeed designed for long lifespan, the gearbox still requires attention. Under harsh or continuous operating conditions, the gear lubrication condition should be checked regularly.
Q3: What are the precautions for installing and using brushless direct-drive motors?
A3: ① Avoid axial force: Ensure that the load force acts on the motor shaft diameter, not the shaft end, during design. ② Ensure concentricity: When connecting the load, ensure good concentricity to prevent excessive radial force from damaging the bearings. ③ Heat dissipation: When used in a confined space, overall heat dissipation design must be considered.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
