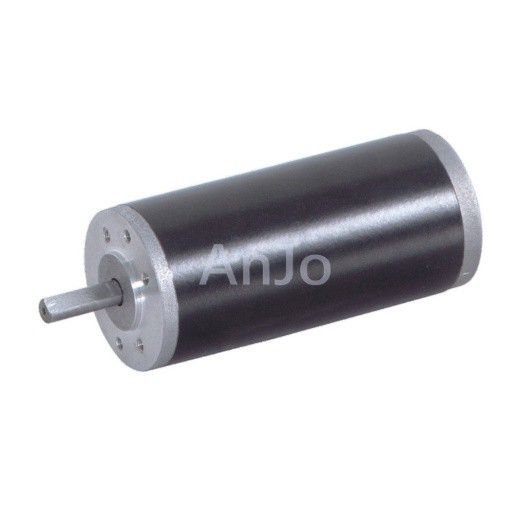

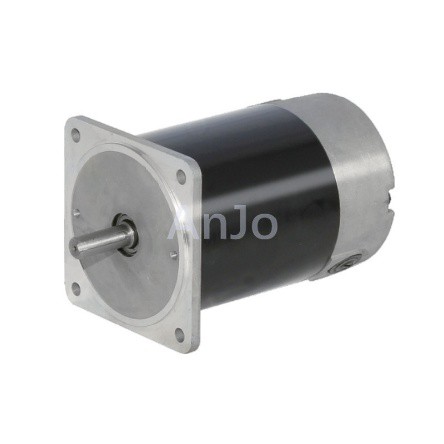

Brushed Dc Motor
Brushed DC motor is a type of DC motor that uses mechanical contact between brushes and a commutator to achieve current commutation. Its core structure consists of four main components: the stator (field winding/permanent magnet), rotor (armature winding), brushes, and commutator. It has a simple structure, low manufacturing cost, high starting torque, and direct control method. It can achieve speed control through voltage adjustment without the need for additional drive circuitry, making it one of the earliest and most widely used types of DC motors.
- Simple structure and low cost: It requires no position sensors or complex drive circuits. The core components are only the stator, rotor, brushes, and commutator. The manufacturing process is mature, and the manufacturing cost is far lower than that of brushless DC motors. Maintenance and replacement are convenient.
- High starting torque: The armature current is controllable during startup, allowing for a starting torque significantly greater than the rated torque (usually 1.5-4 times the rated torque). This makes it suitable for directly starting heavy-duty equipment (such as cranes and elevators) without the need for additional starting devices, resulting in a simple startup process.
- Direct control method: Torque and speed have a linear relationship with armature current and voltage. The control logic is clear, and precise torque and speed control can be achieved through simple voltage/current adjustment, making it suitable for manual adjustment or simple electronic control systems.
|
Motor type |
Brushed DC Motor |
|
Frame size |
16mm ~ 130mm... can be customized |
|
Voltage |
12V 24V 36V 48V 72V 220V 380V |
|
Rated Power |
3W to 2200W |
|
Speed |
1500rpm 1800rpm 2000rpm 3000rpm |
|
Output shaft |
round shaft, D-cut shaft, key-way shaft, hollow shaft… |
|
Thermal |
Optional |
|
Accessories |
Controller, Hall, encoder, etc |
|
Housing |
Aluminum/Cast Iron |
|
Ambient temperature |
-15℃≤0℃≤40℃ |
|
Altitude |
No exceeding 1000 meters |
|
Duty |
S1 |
Application
Q: What if I don't know which model I need?
A: Don't worry, simply provide us with the relevant information, and we will offer professional recommendations and assistance.
Q: What information do I need to provide when inquiring?
A:Motor type (brushed/brushless);
Specific parameters: power, output speed, output torque, voltage, shaft type (solid shaft/hollow shaft), etc.;
If you have any pictures or drawings of the motor, please provide them as well;
Quantity required;
Other special requirements (such as installation method, operating environment, etc.).
Q: How do I place an order?
A: Due to the wide variety of specifications and models of DC worm gear reduction motors, to avoid unnecessary trouble, we recommend that you confirm the specific model, speed, torque, power, installation dimensions, and other details of the gearbox with us before placing an order. Please proceed with the purchase only after confirming all details are correct.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
