Worm Gear Drive
What is the Worm Gear Drive?
Worm Gear Drives are critical precision components in industrial drive systems. Leveraging the principles of worm gear meshing, they offer key advantages such as high gear ratios, low noise operation, strong self-locking capabilities, and high load-bearing capacity. Unlike standard off-the-shelf parts, these components can be fully customized-in terms of specifications, dimensions, and performance-to meet specific operational conditions, installation space constraints, transmission requirements, and environmental demands. With over a decade of expertise in precision drive component manufacturing, our factory specializes in producing both standard and non-standard worm gear sets. We address common issues associated with generic parts-such as poor compatibility, rapid wear, and insufficient transmission precision-by providing tailored, one-on-one drive solutions for diverse sectors, including hoisting machinery, metallurgical equipment, automated assembly lines, mining machinery, smart home systems, and medical devices.
Models
Features
- Fully Customizable & Versatile: Supports customization of all parameters-including module, tooth count, lead, pressure angle, gear ratio, outer diameter, bore size, keyway, and length-as well as material, surface finish, precision grade, and self-locking capabilities. This ensures a 100% fit for installation and transmission requirements without compromising equipment specs, effectively resolving issues associated with modifying off-the-shelf parts, such as installation complexity, transmission stutter, and fitment mismatches.
- Material Selection for Complex Operating Conditions: Tailored to specific environments (e.g., high temperature, humidity, corrosive atmospheres, heavy loads, or high speeds), we offer customization using materials such as tin bronze, aluminum bronze, brass, 45# steel, 40Cr, stainless steel, and alloy steel. Materials are precisely selected to meet performance needs-including wear resistance, rust prevention, fatigue resistance, high load-bearing capacity, and corrosion resistance-thereby eliminating failures caused by premature wear, deformation, or breakage.

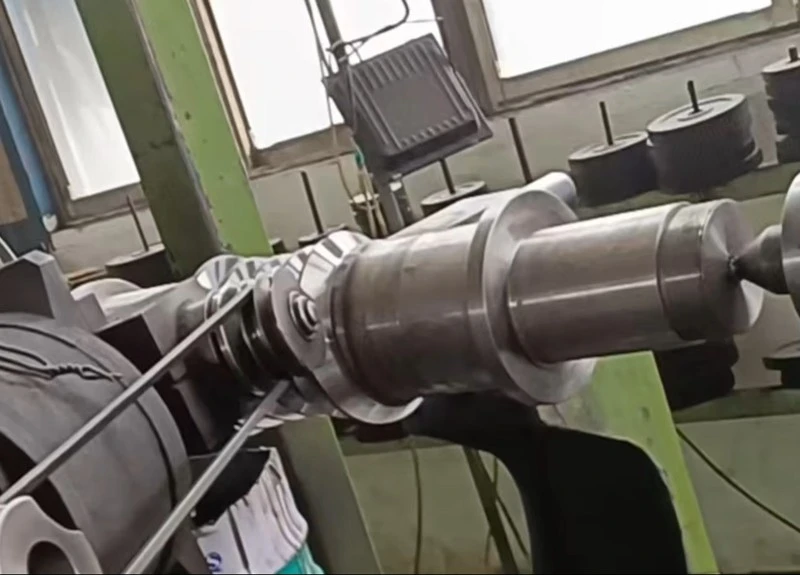

- High-Precision Craftsmanship for Stable Transmission: Manufactured using an integrated process involving 5-axis CNC machines, precision gear hobbing equipment, and CNC grinders, achieving precision grades of IT5–IT7. The gear surfaces are smooth and burr-free with uniform meshing clearance, effectively reducing transmission noise and frictional loss while enhancing efficiency. This ensures smooth, stable, and precise operation-free from stutter or misalignment-meeting the rigorous demands of high-precision automation equipment.
- Rigorous Quality Control & Traceability: Every custom product undergoes comprehensive testing before shipment, including gear profile, tooth alignment, coaxiality, hardness, and load-bearing/pressure tests. Each batch comes with a quality inspection report and material certification; the entire production process is fully traceable. We reject defective or flawed products to guarantee the long-term, stable operation of your equipment.
Advantages
Application
Company Profile
FAQ
Q1: Can worm gear sets be customized without technical drawings?
A1: Yes. Customers can provide physical samples, equipment models, transmission parameters, installation dimensions, and other relevant information. Our engineers can then perform measurements, 3D modeling, and drafting-optimizing parameters before proceeding with custom manufacturing-without the customer needing to provide professional technical drawings at any stage.
Q2: Do custom products guarantee compatibility with the equipment?
A2: Yes. All custom products are precisely designed and manufactured based on the specific operating conditions of the customer's equipment. We confirm all specifications prior to production, verify compatibility before shipment, and provide guidance on installation and commissioning upon delivery. This ensures 100% compatibility; should any issues regarding parameter compatibility arise, we provide free rework and adjustments.
Q3: What is the warranty period for custom worm gear sets?
A3: Standard industrial custom worm gear sets come with a 12-month warranty. For products designed for high-load or special operating conditions, tailored warranty plans are established based on the specific materials and manufacturing processes used. Within the warranty period, repairs or replacements are provided free of charge for non-man-made damage, and lifelong technical maintenance support is offered.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
