Rack And Pinion Gear
What is the Rack And Pinion Gear?
The Rack and Pinion Gear is the only core transmission component in the industrial sector capable of achieving unlimited travel length, high speed, heavy-load capacity, and high-precision linear motion. Composed of a circular drive pinion meshing with a linear gear rack, it precisely converts the rotary motion of a motor into linear reciprocating motion for equipment. Compared to ball screw or guide rail systems, rack-and-pinion drives overcome limitations regarding travel distance, load capacity, and speed; they eliminate issues such as screw deflection, restricted travel ranges, and susceptibility to jamming, making them the preferred transmission solution for large-scale gantry equipment, long-stroke automation mechanisms, and heavy-duty mobile platforms.
Our factory specializes in the R&D, machining, and customization of precision rack-and-pinion systems, strictly adhering to major industrial standards including DIN (Germany), JIS (Japan), and GB (China). We mass-produce a comprehensive range of straight-tooth and helical-tooth gears and racks-including hardened and precision-ground options-while also offering personalized customization for non-standard modules, lengths, precision grades, and structural designs. Drawing on over a decade of experience in matching linear transmission solutions to specific operating conditions, we effectively resolve common industry pain points such as excessive backlash, operational noise, rapid precision degradation, heavy-load vibration, and segment misalignment. We provide stable, long-lasting transmission support for high-end intelligent manufacturing and heavy industrial equipment, fully aligning with the core principles of professional expertise, practical experience, authoritative quality, and trustworthy service.
Models
Types of Rack and Pinion Gear
1. Straight-Tooth Gear Racks
Featuring a vertical tooth profile and simple structure, these racks offer uniform load distribution and easy installation without complex assembly requirements. They are suitable for industrial applications involving medium-to-low speeds and standard precision. Manufactured using a precision milling process, they ensure consistent tooth profiles and controlled tolerances. Offering excellent cost-performance and durability, they serve as standard drive components for general automation equipment, standard machine tools, and conveyor systems, with support for custom splicing to any length or cutting to size.
2. Helical-Tooth Gear Racks

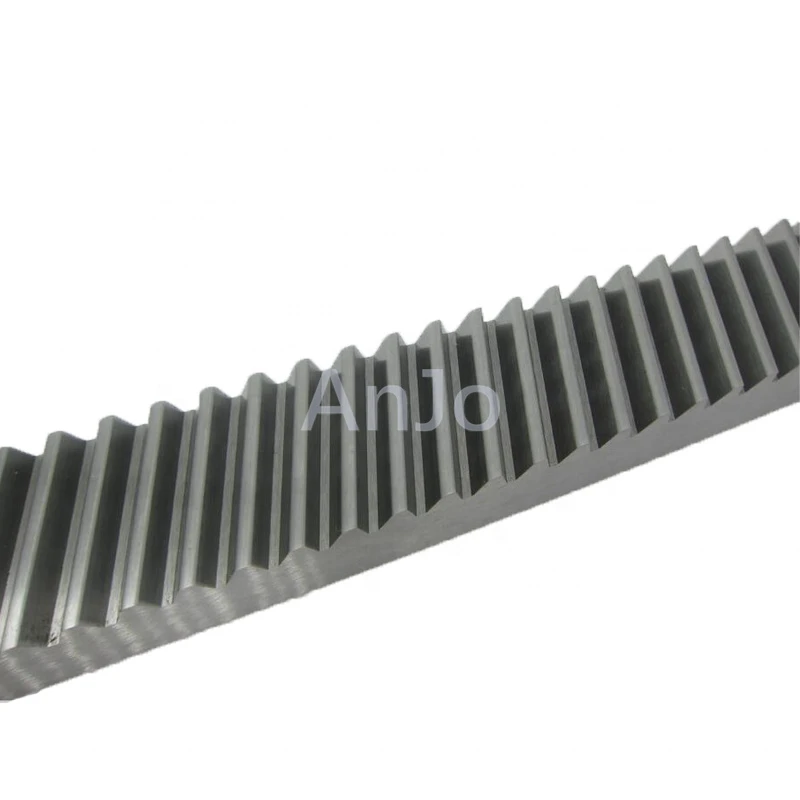

Designed with staggered helical teeth, these racks offer a higher contact ratio and smoother engagement compared to straight-tooth versions. This design effectively reduces transmission noise by over 20% and increases transmission efficiency by 10%–15%. They excel in impact resistance, high-speed operation, and low wear, making them ideal for high-end equipment requiring high speeds, precision positioning, and continuous operation; they are widely used in precision machine tools, intelligent robotic arms, and high-speed material handling systems.
3. Precision Quenched and Ground Gear Racks
Produced through a three-stage process-integral quenching, high-frequency tooth surface hardening, and precision grinding-these racks achieve a surface hardness of HRC 55–62 and precision levels of DIN 5 / JIS 2, enabling near-zero backlash transmission. With smooth, error-free tooth surfaces and exceptional indexing accuracy, they maintain precision during long-term operation. They effectively eliminate issues common to standard racks, such as rapid wear, significant positioning errors, and the need for frequent recalibration, making them the ideal choice for high-end, precision smart manufacturing equipment.
4. Non-Standard Custom Gear Racks
We offer customization for special modules, unique tooth profiles, extended or thickened dimensions, stainless steel (corrosion-resistant) materials, high-temperature resistance, and heavy-load wide racks. Custom features such as stepped profiles, slots, drilled holes, and end-face machining can be tailored to specific installation structures. These racks are compatible with imported equipment replacements, retrofitting of older machinery, and specialized non-standard equipment, allowing for direct installation without modifying the existing machinery.
Features
- High-speed, heavy-load compatibility with superior transmission efficiency: Supports operating speeds exceeding 100 m/min while withstanding high-torque, heavy-load impacts. It offers outstanding fatigue and deformation resistance, ensuring smooth, uninterrupted 24-hour operation, with transmission efficiency far surpassing that of traditional linear transmission components.
- Enhanced through multiple processes for doubled service life: Standard products utilize precision gear milling, while high-end models employ hardening and precision gear grinding. Combined with black oxide, galvanizing, or anti-rust coatings, the gear surfaces offer exceptional wear, corrosion, and impact resistance, resulting in a service life that far exceeds that of ordinary transmission components.
- Controllable splicing precision with no cumulative error: Features a proprietary segmental calibration process; each rack segment undergoes individual pre-shipment inspection for pitch error and end-face precision. This ensures zero cumulative deviation when splicing multiple segments, maintaining straightness and positioning accuracy throughout operation and effectively resolving the common industry issue of splicing misalignment.
Application
Company Profile
FAQ
Q1: Does the splicing of gear racks result in cumulative errors?
A1: No, it does not. Our factory employs a process of independent precision control for each segment; the indexing accuracy of every rack section is calibrated individually. Before shipment, we conduct a comprehensive simulated assembly test to optimize the splicing gaps, effectively eliminating cumulative errors and ensuring stable operating precision for equipment with extra-long travel ranges.
Q2: How can abnormal noise and vibration in rack-and-pinion drives be resolved?
A2: These issues often stem from insufficient tooth profile accuracy, excessive backlash, or assembly misalignment. By using precision helical racks paired with anti-backlash pinions-combined with our standardized installation and calibration procedures-you can completely eliminate binding, noise, and vibration, ensuring smoother operation.
Q3: How should one choose between helical and spur gear racks? Are there clear selection criteria?
A3: Selection can be precisely determined based on four key factors: speed, precision, noise levels, and load. Spur gear racks are the preferred choice for low-speed, light-load, and general-purpose applications where budget-friendliness, cost-effectiveness, ease of installation, and broad compatibility are priorities. Helical gear racks are preferred for equipment requiring high-speed continuous operation, high-precision positioning, low noise, and the ability to withstand heavy loads or impacts; they offer superior tooth engagement, smoother transmission, quieter operation, and greater fatigue resistance. For precise selection, engineers can provide a free, one-on-one consultation to match the optimal solution to your equipment specifications.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
