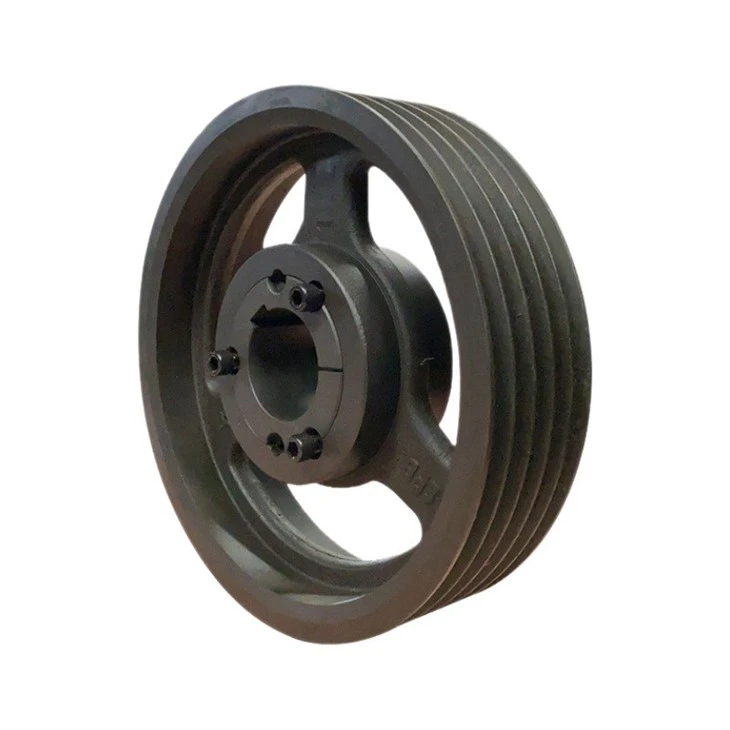

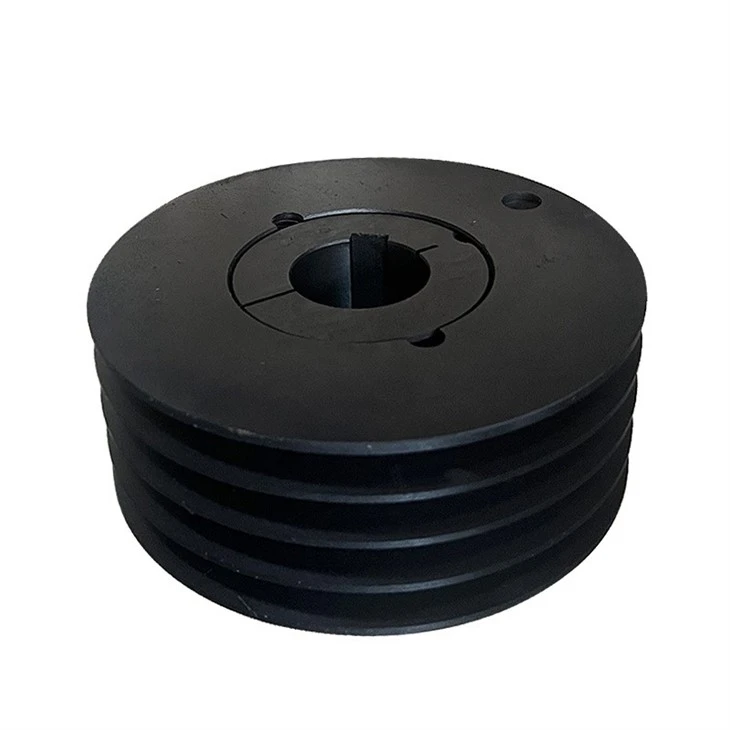

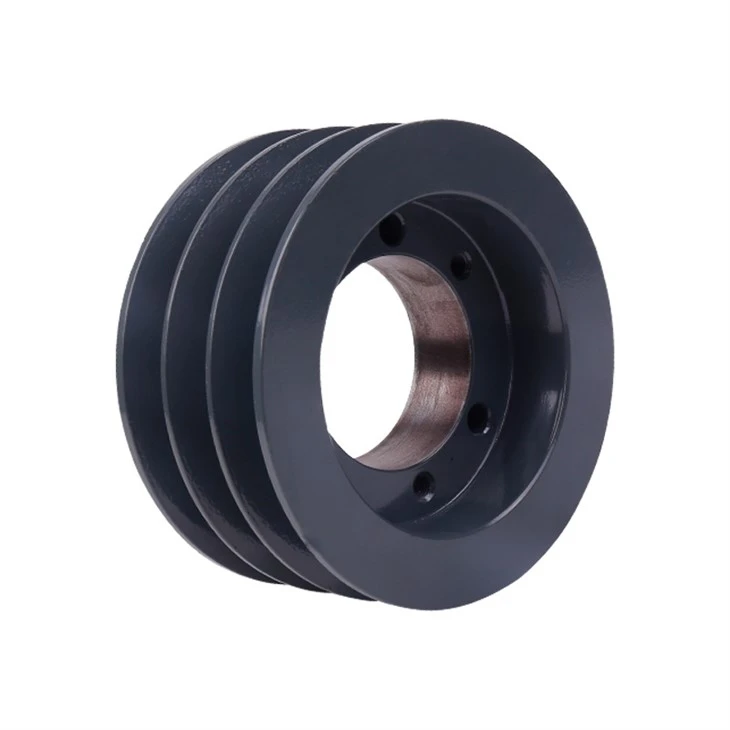

V Belt Pulley

What is the V Belt Pulley?

The V-belt pulley is an industrial, heavy-duty transmission component designed specifically for wedge-based friction drives. Unlike the mechanisms used for synchronous pulleys or flat-belt pulleys, it relies on the wedging action of its V-shaped grooves to grip the V-belt; by utilizing friction on both side faces to amplify torque, it offers exceptional resistance to slippage and overload. As a core transmission component in heavy-duty general machinery, the V-belt pulley is characterized by high torque capacity, high operational tolerance, durability in harsh environments, and low maintenance costs, making it the most widely used type of transmission pulley in applications such as industrial fans, pumps, mining equipment, agricultural machinery, and general power equipment.

Types of V Belt Pulley



1. Standard V-Belt Pulleys (Types A, B, C, and D)
These feature classic, standardized groove profiles compatible with conventional V-belts. The grooves are precision-machined to ensure a precise fit and high tolerance, offering excellent contact and reliability. Available in single, dual, and multi-groove configurations, they are ideal for low-to-medium speed and standard-load equipment. Highly cost-effective, they are widely used in general applications such as consumer machinery, small processing equipment, standard fans, and pumps, serving as the mainstream choice for replacing drive components in older equipment.

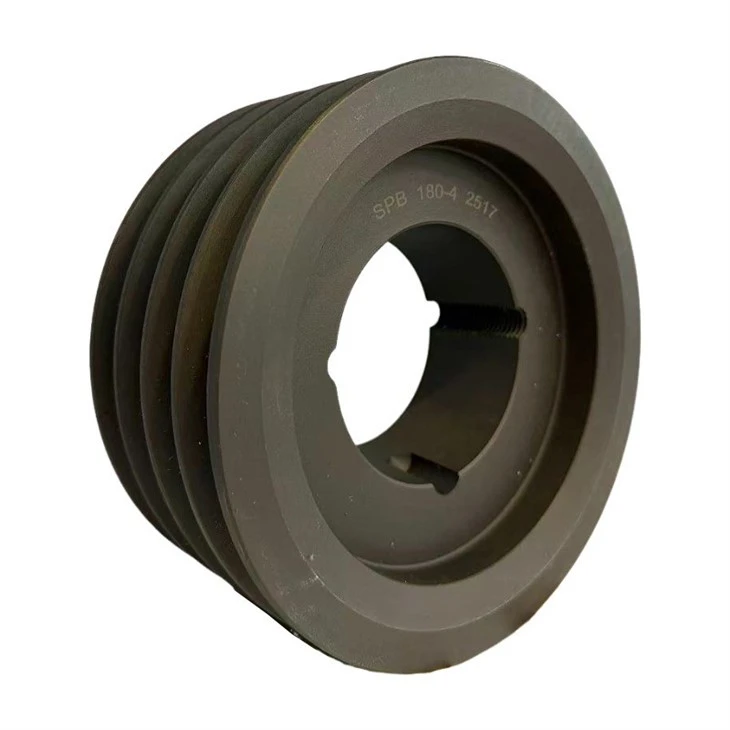

2. Narrow V-Belt Pulleys (SPZ, SPA, SPB, and SPC)
An upgraded series designed for heavy-duty industrial applications, these pulleys feature narrower grooves, a more compact structure, and higher load-bearing density. Compared to standard V-belt pulleys, they deliver 30% higher torque transmission and 25% better heat dissipation, while offering superior resistance to slippage and stretching. Engineered for high-speed, continuous, and heavy-load operations, they are standard drive components for modern heavy industry, automated assembly lines, large air compressors, dust collection systems, and mining machinery.



- Base Material: High-strength HT250 gray cast iron. Unlike the common HT200 material found on the market, HT250 offers higher density and finer grain structure. It delivers superior compressive strength, flexural strength, and vibration resistance; it resists deformation and cracking during high-speed operation and maintains performance against thermal degradation. Ideally suited for industrial equipment requiring 24-hour continuous operation, it serves as the specialized base material for heavy-duty V-belt pulleys.

- Precision CNC-Machined Grooves: Formed via integrated precision CNC turning, the grooves ensure a perfect fit with zero deviation. Groove angles, depths, and spacing strictly adhere to national standards. The groove walls are smooth and burr-free, ensuring uniform belt contact; this prevents belt breakage, misalignment, and abnormal wear caused by localized stress concentrations, thereby significantly reducing the frequency of belt replacements.

- Rigorous G6.3 Dynamic Balancing: Designed for high-speed operating conditions, every finished product undergoes dynamic balancing testing and correction. Meeting the G6.3 industrial standard-far superior to the G16 grade of standard pulleys-this process effectively eliminates issues such as high-speed vibration, equipment resonance, and bearing noise or damage.

- Surface Anti-Rust and Hardening Treatment: The surface undergoes sandblasting for rust removal, blackening for rust prevention, and oil-curing treatments. It is capable of withstanding complex operating environments, including dusty, humid, and outdoor conditions, as well as exposure to mild corrosives. It remains rust-free, smooth-running, and structurally intact over long-term use, ensuring enduring transmission precision and stability.
