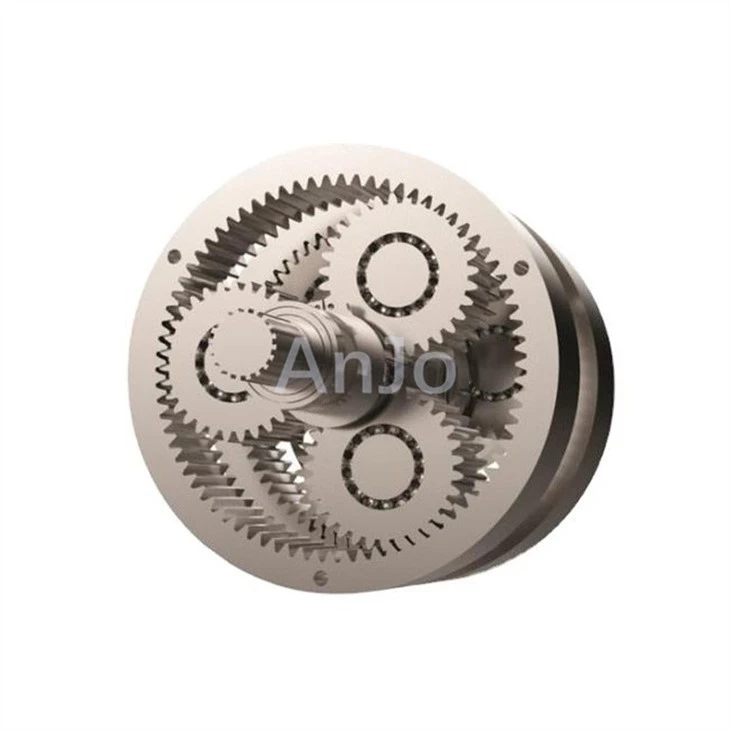

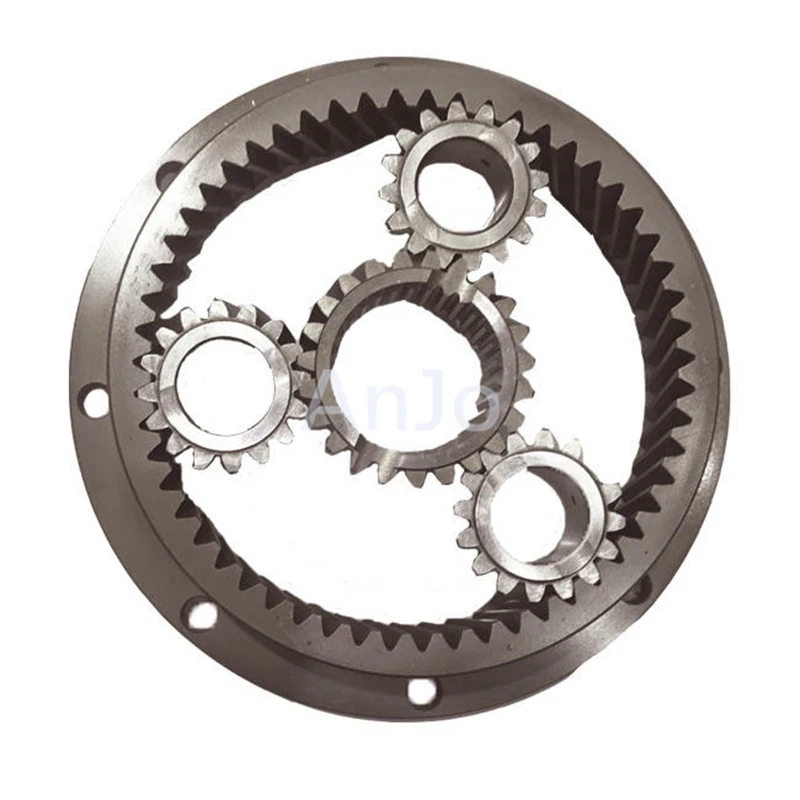

Planetary Gear

A1: The key lies in the structure involving multiple meshing points that distribute the load. Standard gears rely on single-tooth-face meshing, resulting in concentrated stress and limited load capacity; in contrast, planetary gears utilize three to four sets of planet gears to share the power load simultaneously. This ensures forces are evenly distributed, significantly boosting load-bearing capacity per unit of volume. Furthermore, the coaxial transmission design eliminates eccentric losses, resulting in superior torque utilization. Consequently, for a given size, planetary gear systems deliver far greater torque than traditional gear arrangements.

A2: Planetary gears manufactured using standard processes are not prone to wear or tooth breakage, as their multi-gear load-sharing structure offers superior impact resistance. In daily operation, avoiding prolonged overloading and shock loads, ensuring precise coaxial alignment during assembly, regularly applying specialized grease, and promptly removing debris from gear surfaces can effectively minimize uneven wear and stress concentration; this allows for a stable service life of 3 to 5 years-far exceeding that of standard transmission gears.

A3: Single-stage planetary gears offer a ratio range of 3:1 to 10:1; they feature a more compact design, higher transmission efficiency, and lower noise levels, making them ideal for applications requiring low ratios, high precision, and high speeds. In contrast, two-stage or three-stage planetary gears provide ratios ranging from 10:1 to 1000:1; they deliver higher reduction ratios and greater output torque, making them suitable for heavy-duty transmission scenarios that require low speeds, high torque, and significant speed reduction. Selection can be precisely matched to the specific speed and torque requirements of the equipment.
